Electric Hot Tub Heating Systems

Northern Lights Cedar Tubs offers the widest variety of hot tub heating systems in the market! From single pump circulation to dual pump Hi-performance jetted hot tub systems. All our main electrical hot tub components are manufactured in California by Applied Computer Controls (ACC), the controls that pioneered the spa industry. We offer both North American UL certified products as well as International CE certified components. The Northern Lights advanced spa controller by ACC provides a flexible, intuitive system for controlling and monitoring hot tubs and spas. Featuring IPX4 weather resistance, ACC spa packs are protected from splashing water. All our systems can be used on any hot tub or spa, including custom installations!

Call us to discuss your heating needs

EL SERIES

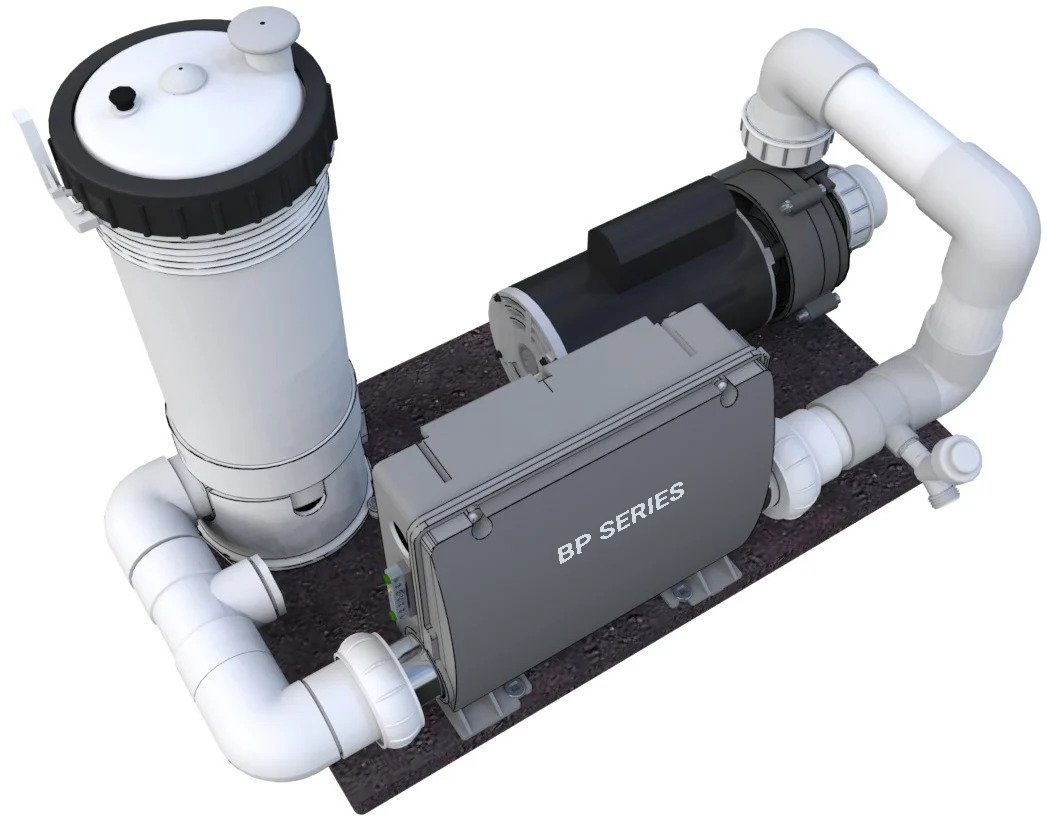

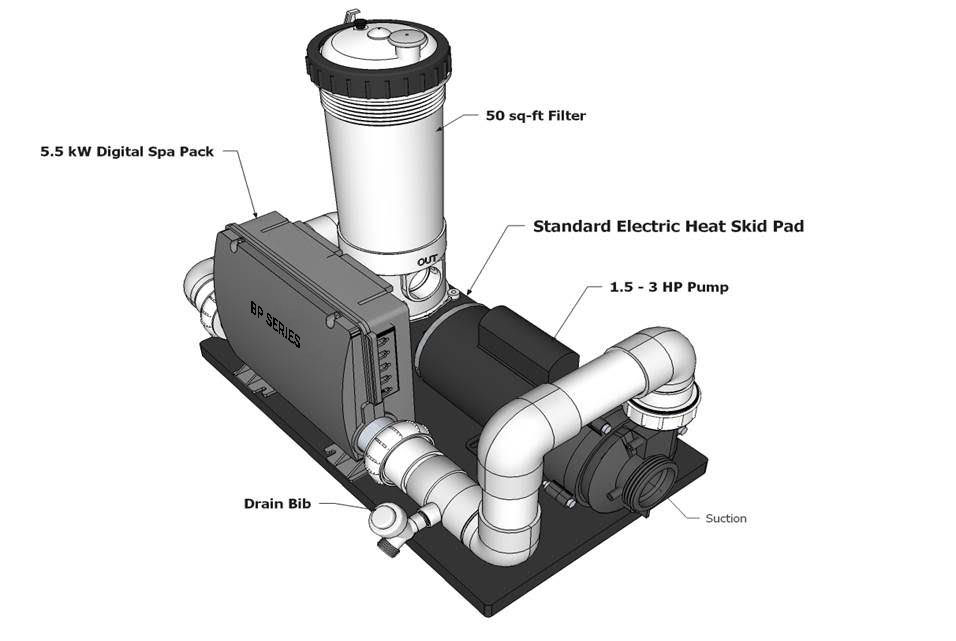

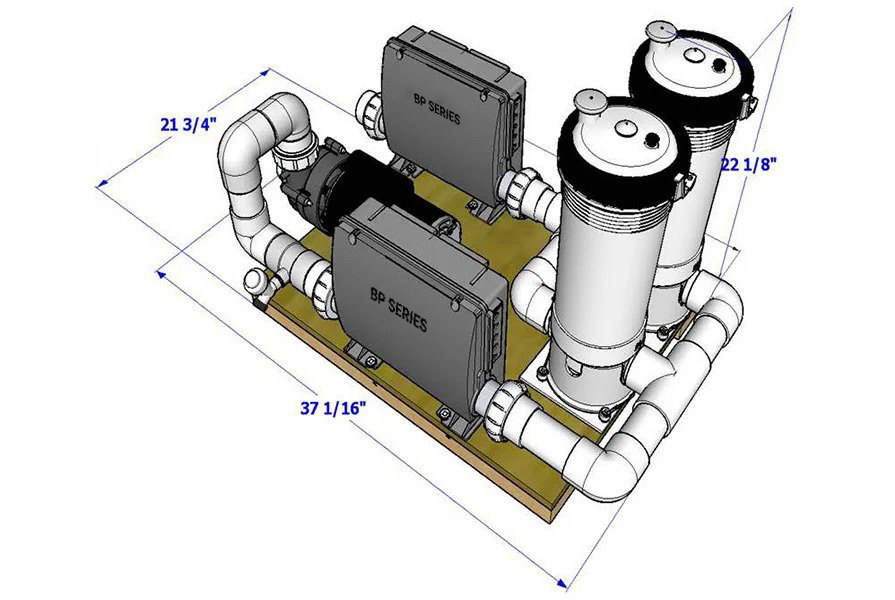

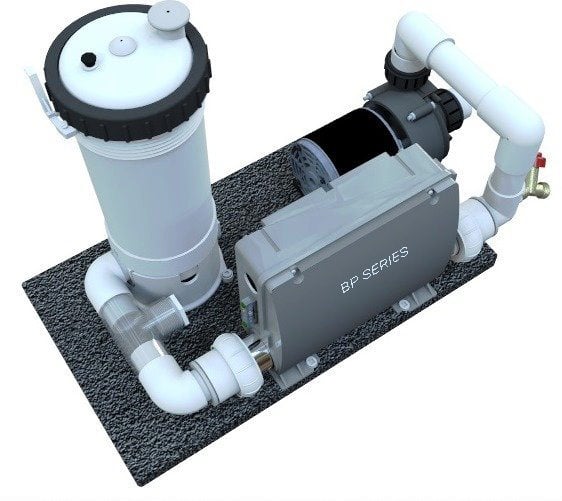

BP SERIES

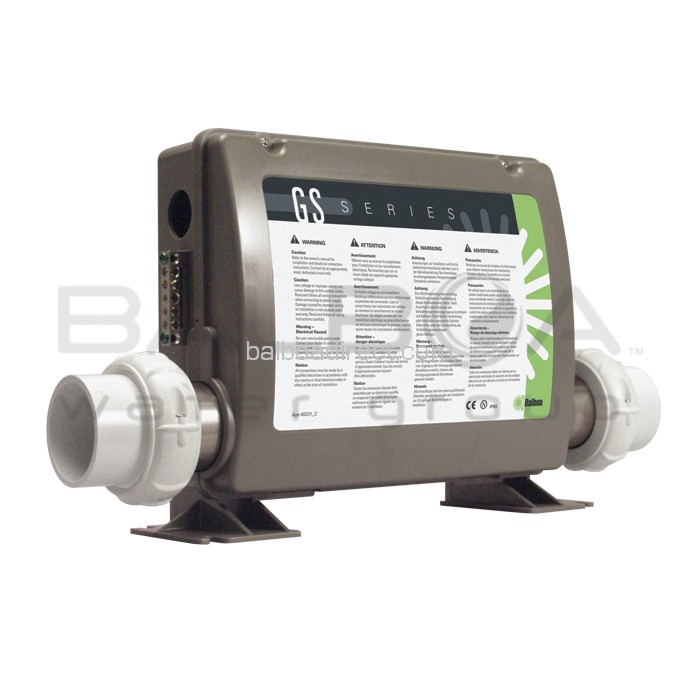

GS SERIES
GS SERIES

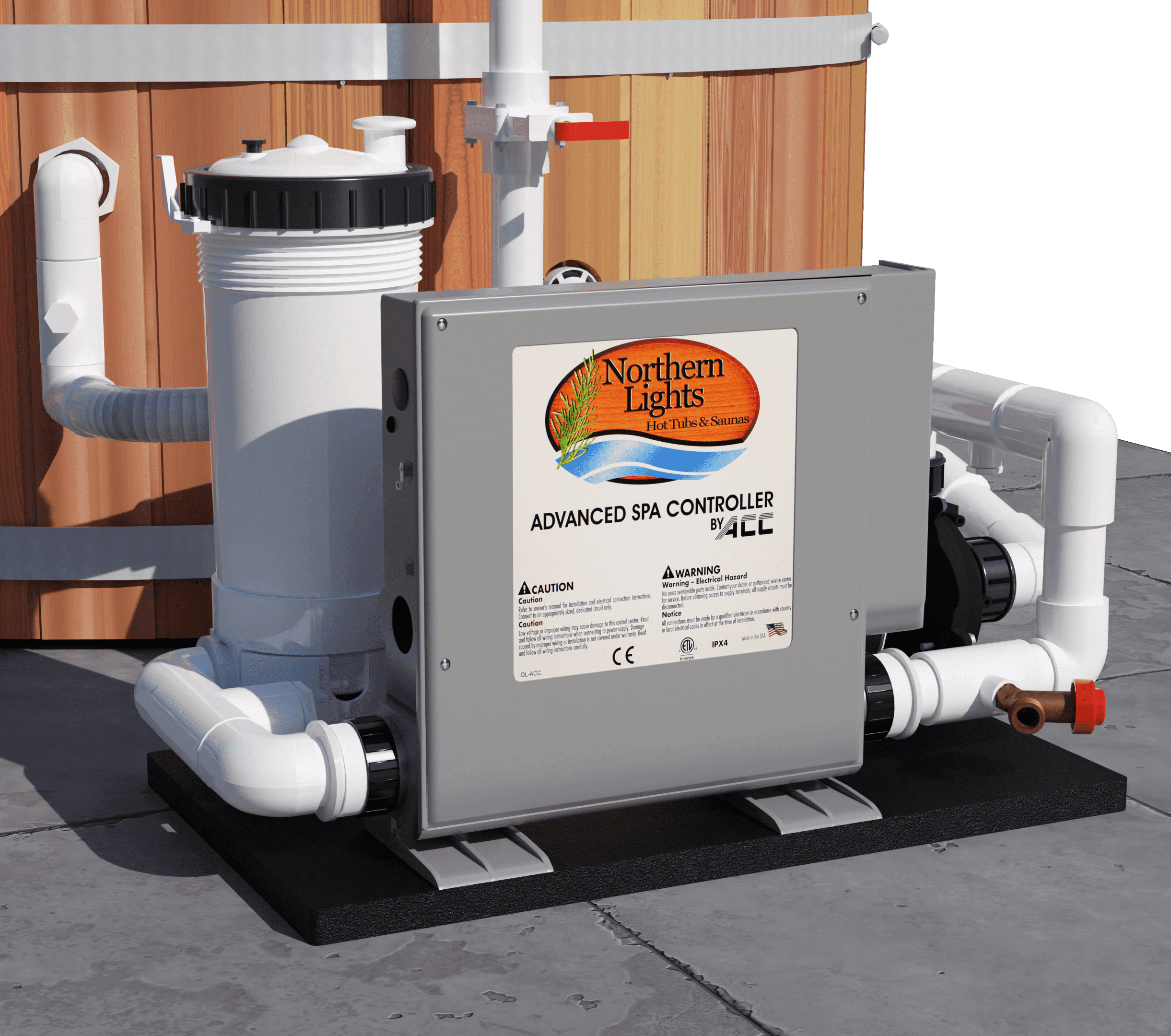

Northern Lights Advanced Spa Controller

Northern Lights Advanced Spa Controller

Northern Lights Advanced Spa Controller

The Northern Lights Advanced Spa Controller is a full featured spa pack that is provided standard with our Hi-Performance Heating Systems. Controls a 2-speed primary pump, a single speed air blower or a single speed secondary pump, a 12-volt spa light, an auxiliary light and an ozonator. The system comes with a calibrated pressure switch and a heavy duty 2 pole contractor to control the 5 KW heating element. This system is convertible to run on 120 volts.

Northern Lights Hybrid Spa Controller
Northern Lights Hybrid Spa Controller
Northern Lights Hybrid Spa Controller

Gas heating is an efficient and cost-effective heating method but limited to above freezing temperatures. With winter being considered one of the best times to enjoy a hot tub, Northern Lights is proud to introduce the Hybrid Spa Controller. Simply plumb your supply & return and let the spa pack take over. When the weather turns too cold for the gas heater, the Hybrid Spa Controller will switch to electric heat.

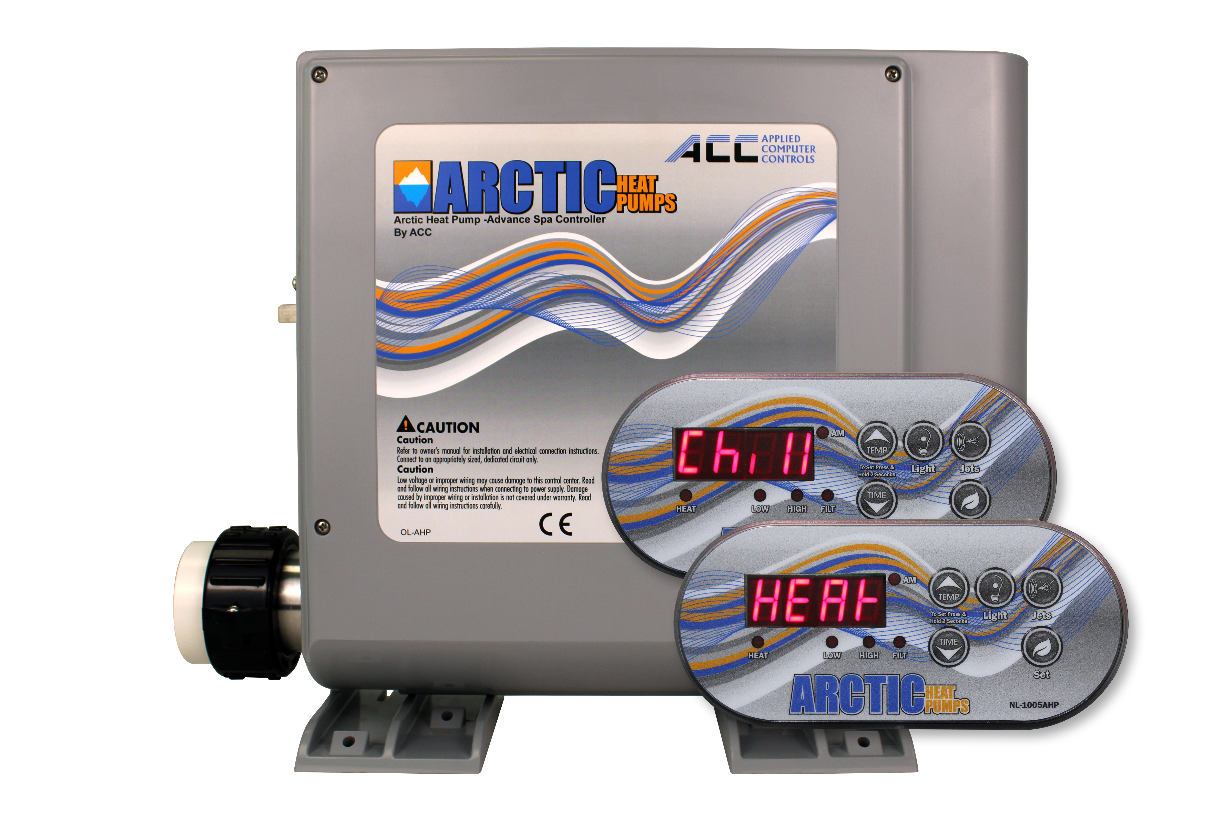

Arctic Heat Pumps Advanced Spa Controller

Arctic Heat Pumps Advanced Spa Controller

GS SERIES

Arctic Heat Pumps Advanced Spa Controller provides a hybrid ready system for the addition of an Arctic Heat Pump. This allows you to cut energy cost by up to 80%, simply by using the heat pump. However, if at any time the heat pump requires assistance, such as when the temperature drops below -20C (5F), the electric heater will automatically turn on and take over.

ACC SmarTouch Digital AUX Heater

ACC SmarTouch Digital AUX Heater

ACC SmarTouch Digital AUX Heater

Need extra heating capacity or quicker heat up times? Combine the ACC 5KW AUX heater with the Northern Lights Advanced Spa Controller for 10KW of electric heating capacity.

previous arrowprevious arrow
next arrownext arrow

Northern Lights? Complete Heater System Configurations

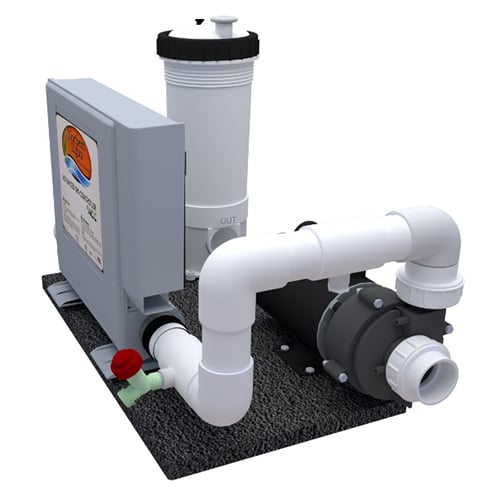

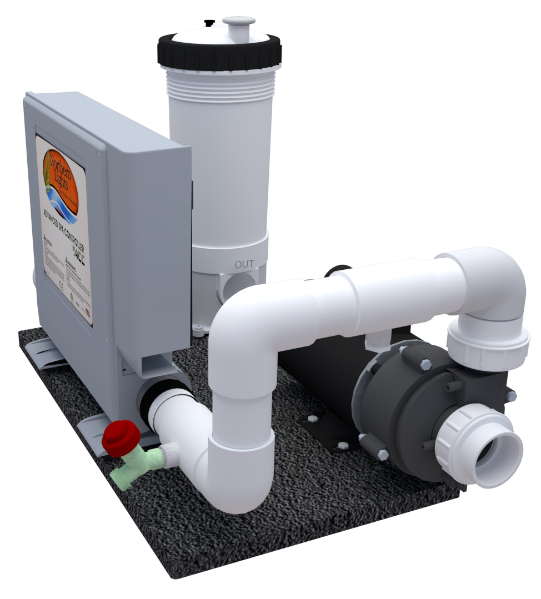

Northern Lights Standard Configuration (5 kW-Domestic / 2.7 kW-International)

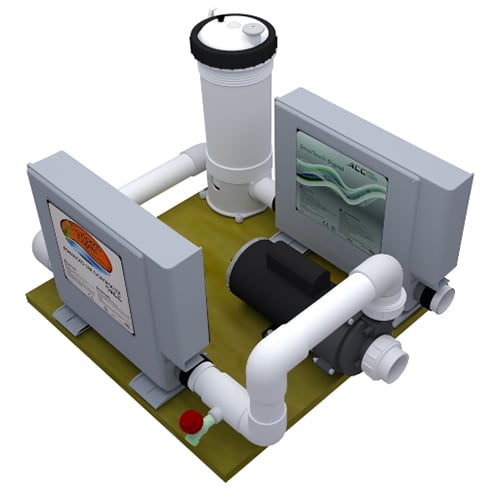

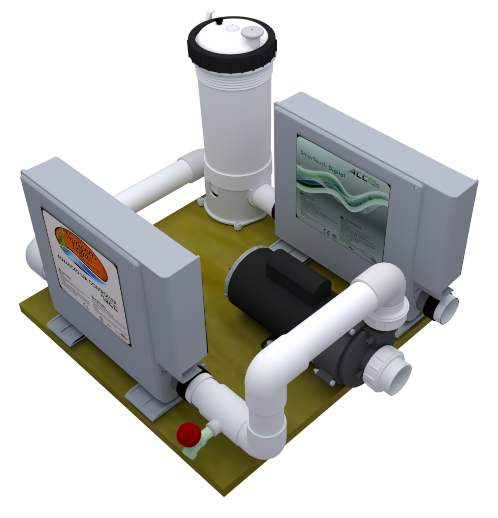

Northern Lights Configuration With Auxiliary Heater (10 kW-Domestic / 5.5 kW-International)

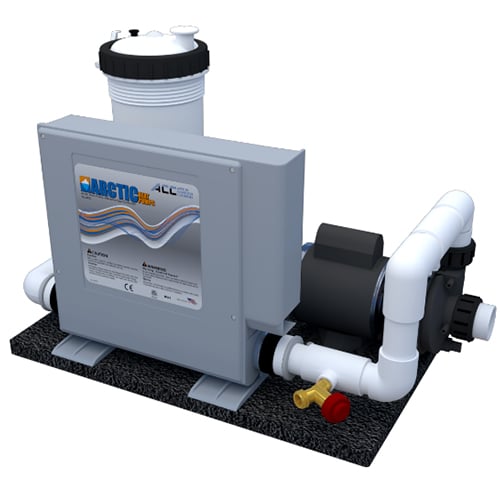

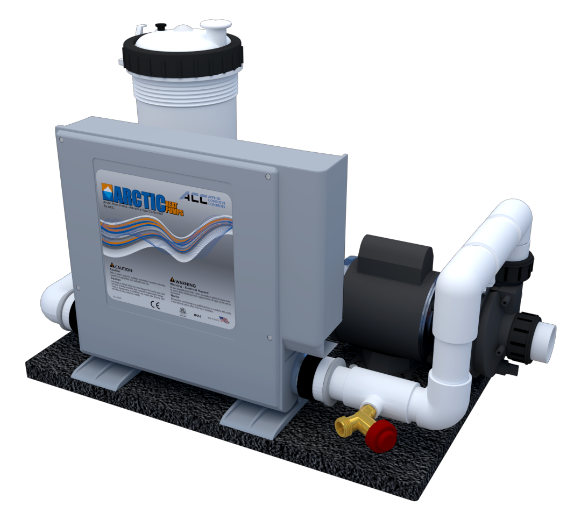

Arctic Heat Pumps Hybrid Standard Configuration (5 kW-Domestic / 2.7 kW-International)

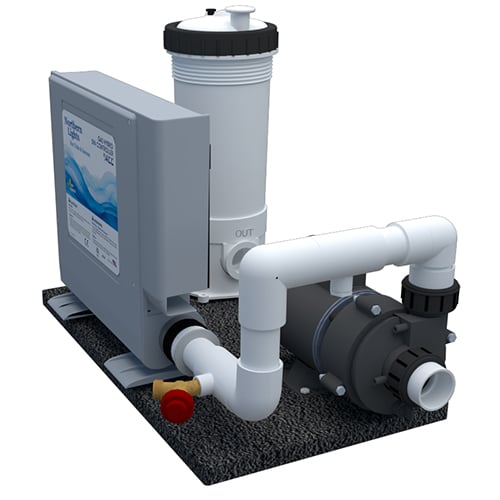

Northern Lights Hybrid Gas Configuration (5 kW-Domestic / 2.7 kW-International)

Standard Controllers

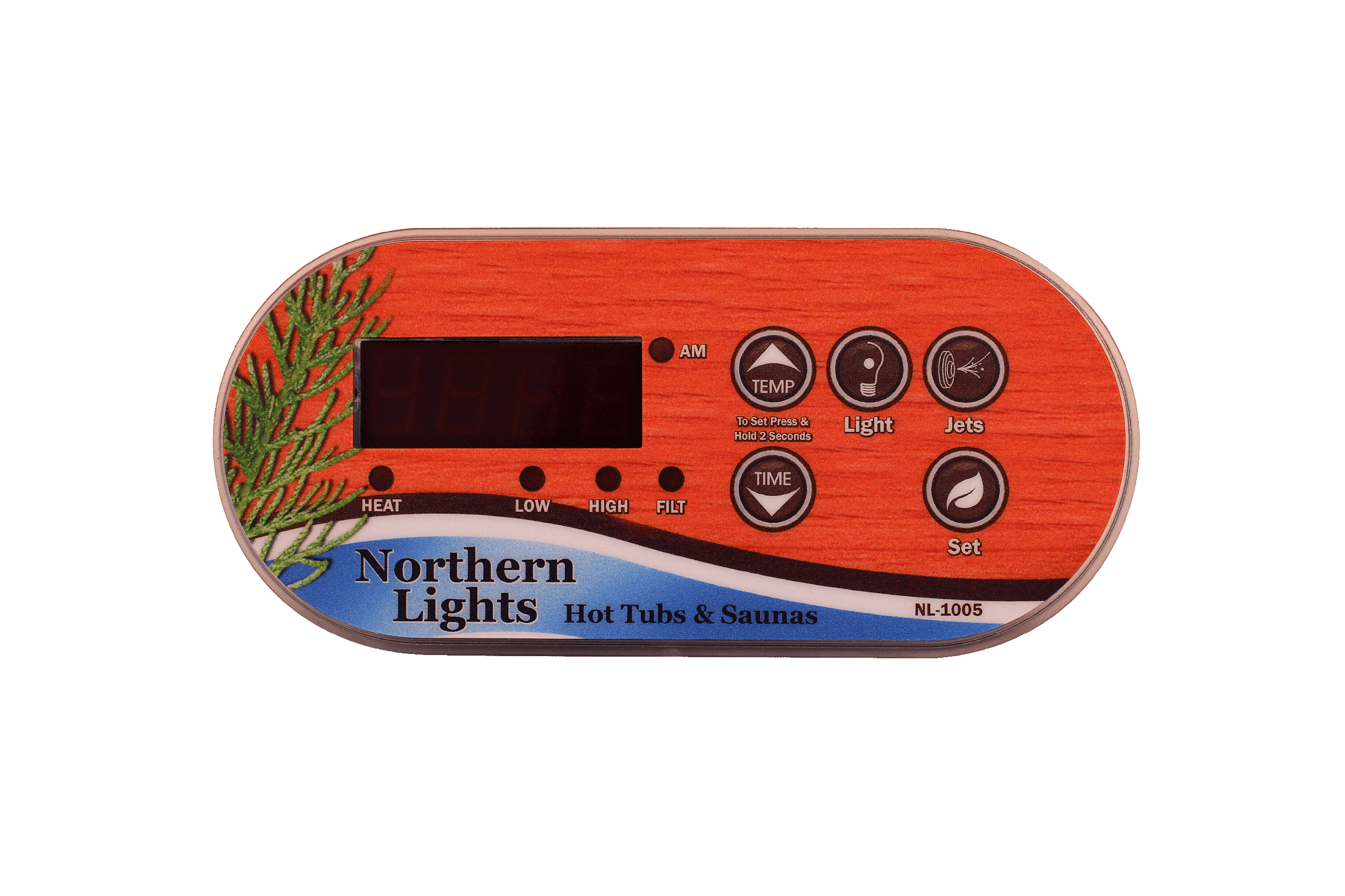

NL-1005 for Standard Electric Spa Packs

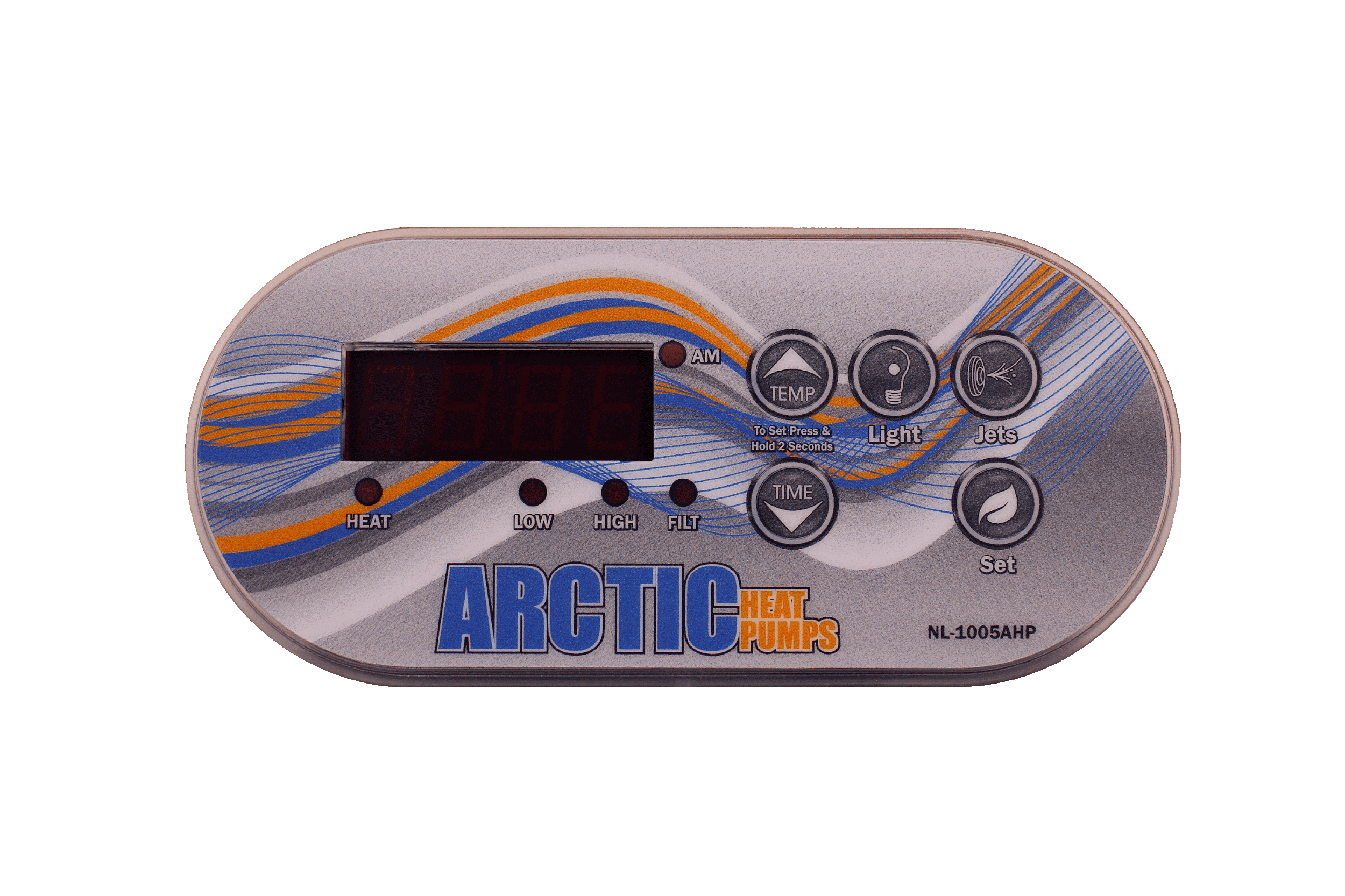

NL-10005AHP for Arctic Heat Pump/Electric Spa Packs

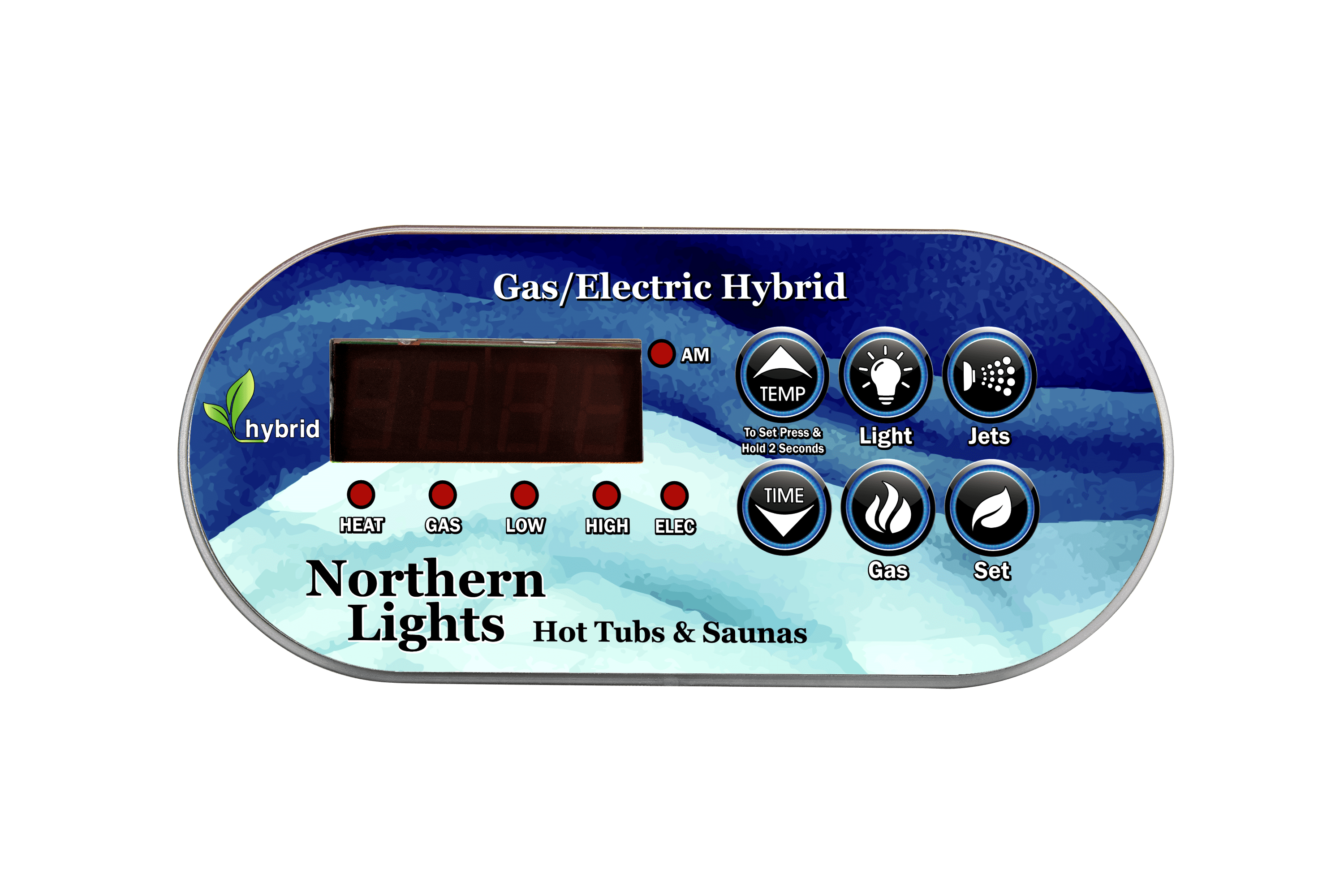

NL-1000HBD for Gas/Electric Hybrid Spa Packs

HEATING & CHILLING

The Arctic Spa Pack integrates completely with the Arctic Heat Pump. As soon as you turn the temperature down below the tubs current temperature, the LCD display will switch and show “Chilling.” The Spa Pack will then send a signal to the heat pump to open its four-way reversing valve and in minutes will be chilling the tub.

Automatic Mode – simply set it and forget it. If the weather turns too hot, your spa will always remain at the temperature you set it to. If you want to have a cold chill tub but don’t want your spa to freeze during the cold season, the Northern Lights Arctic Spa system will add heat when needed to keep your tub from freezing and should the weather suddenly get warm, the system will start to chill.

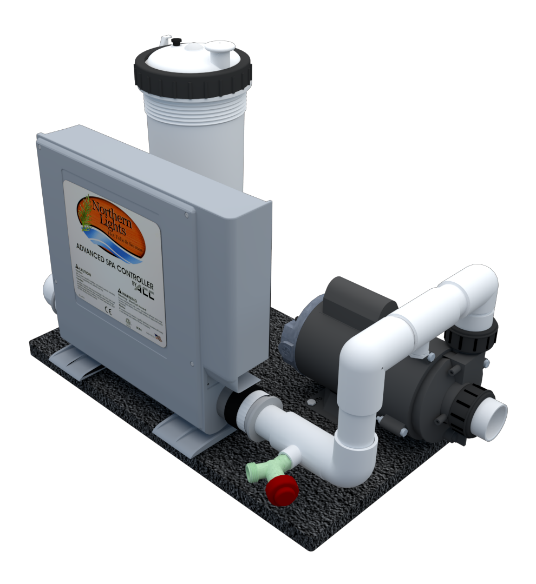

Electric Heating System

Electric Heating System
Circulation Only

SPECIFICATION

  • Northern Lights Advanced Spa Controller with NL-1005 Digital LCD Controller
  • 1.3Kw heater with 120 VAC or 5Kw heater with 240 VAC
  • 50 sq. ft. filter
  • LX Circulation pump .15 HP - 120 or 240 VAC
  • Drain & Fill valve with garden hose attachment
  • 12 Volt Mood Light with optional LED lighting
  • 5 Kw Heater -30 Amp 240 VAC - 3 wire service
  • 1.3 Kw Heater -20 Amp 120 VAC -2 wire service

RECOMMENDED USE

  1. Recommended for Cottage or Homes with limited power available electric service, or for persons who do not want jets. Standard with no jet, circulation/filtration only systems.
  2. Energy Efficient! Used with Standard Soaker tubs and Ofuro Tubs.
  3. Quiet!
  4. 120 VAC or 240VAC

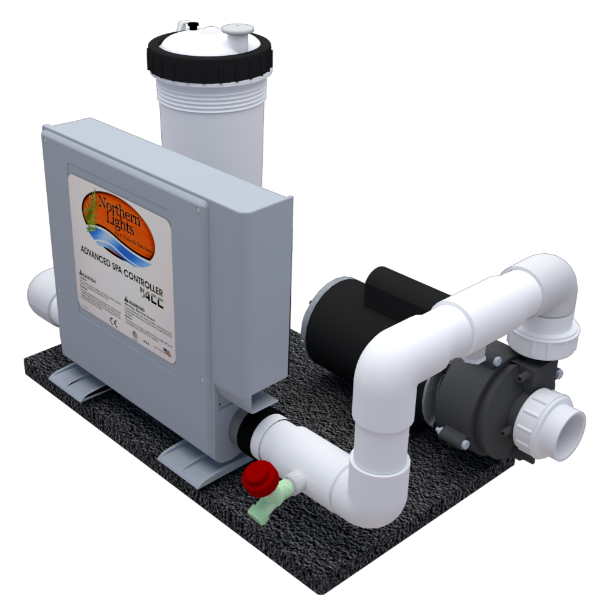

Electric Heating System
With Jets

SPECIFICATION

  • Northern Lights Advanced Spa Controller with NL-1005 Digital LCD Controller
  • 5 Kw heater with 220 VAC
  • 4-8 Hydrotherapy Jets
  • 50 sq. ft. filter
  • LX 1.5 HP 2 Speed Pump - 220 VAC
  • Drain & Fill valve with garden hose attachment
  • 12 Volt Mood Light with optional LCD lighting
  • 30 or 40 amp 220 VAC

RECOMMENDED USE

  1. Recommended for Residential Homes with adequate power resources. Runs off 240* volt 30 or 40A circuit.
  2. Standard with Classic Tubs or with Ofuro Tubs with Jets (4 only) option
  3. Hydrotherapy Massage!
  4. 220 VAC*
  5. *Also available in 110 VAC for Ofuro Tubs with 4 jets

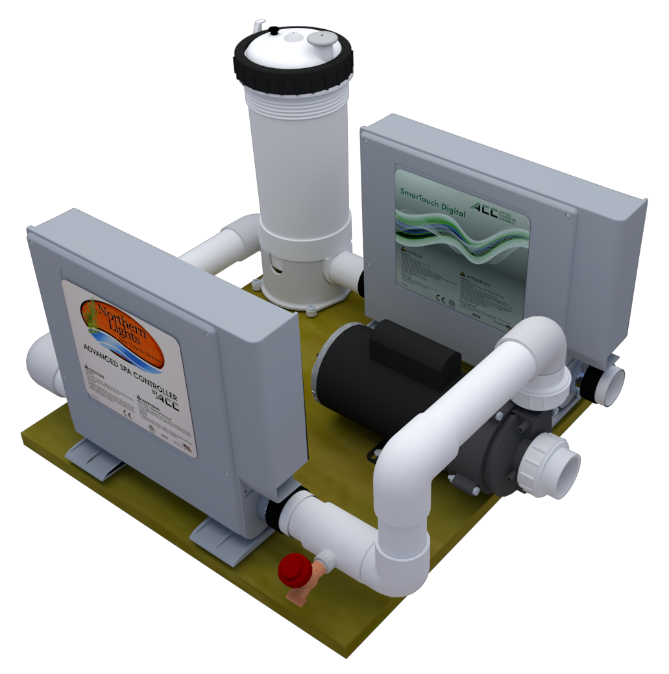

Electric Heating System
Dual Heaters & Jets

SPECIFICATION

  • Northern Lights Advanced Spa Controller with NL-1005 Digital LCD Controller
  • ACC 5 Kw AUX Heater
  • 10 Kw total heating capacity with 220 VAC
  • 4-8 Hydrotherapy Jets
  • 50 sq. ft. filter
  • LX 1.5 HP 2 Speed Pumps - 220 VAC
  • Drain & Fill valve with garden hose attachment
  • 12 Volt Mood Light with optional LCD lighting
  • 80 AMPs 220 VAC

RECOMMENDED USE

  1. Aqua Therapy Tubs
  2. Fast Heat up Time!
  3. 220 VAC

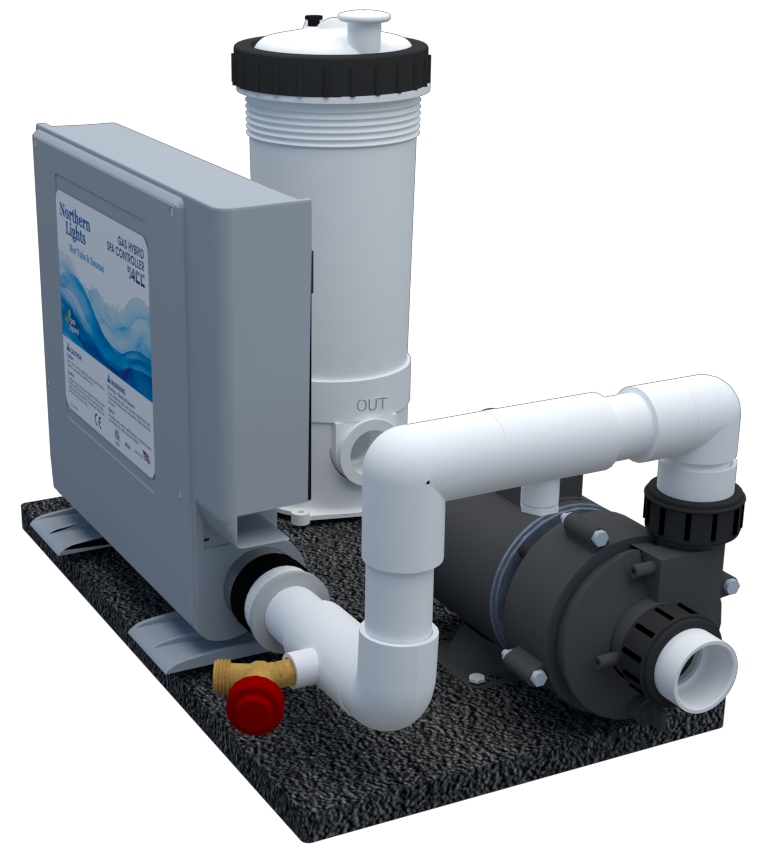

Gas Electric Hybrid Heating
System Circulation

SPECIFICATION

  • Northern Lights Hybrid Spa Controller with NL-1005 Digital LCD Controller
  • 1.3Kw heater with 120 VAC or 5Kw heater with 240 VAC
  • 50 sq. ft. filter
  • LX Circulation pump .15 HP - 120 or 240 VAC
  • Drain & Fill valve with garden hose attachment
  • 12 Volt Mood Light with optional LCD lighting
  • 5 Kw Heater -30 Amp 240 VAC - 3 wire service
  • 1.3 Kw Heater -20 Amp 120 VAC -2 wire service

RECOMMENDED USE

  1. Recommended for Cottage or Homes with gas or propane in climates where the tub will be operated in freezing temperatures.
  2. Energy Efficient! Used with Standard Soaker tubs and Ofuro Tubs.
  3. Quiet!
  4. 120 VAC or 240VAC

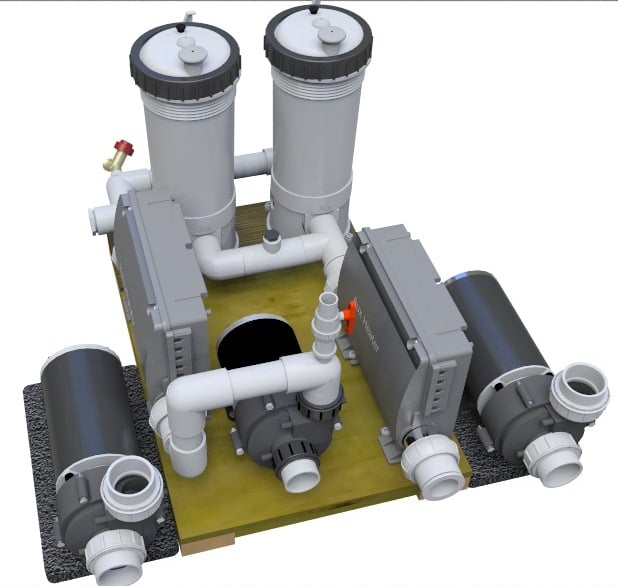

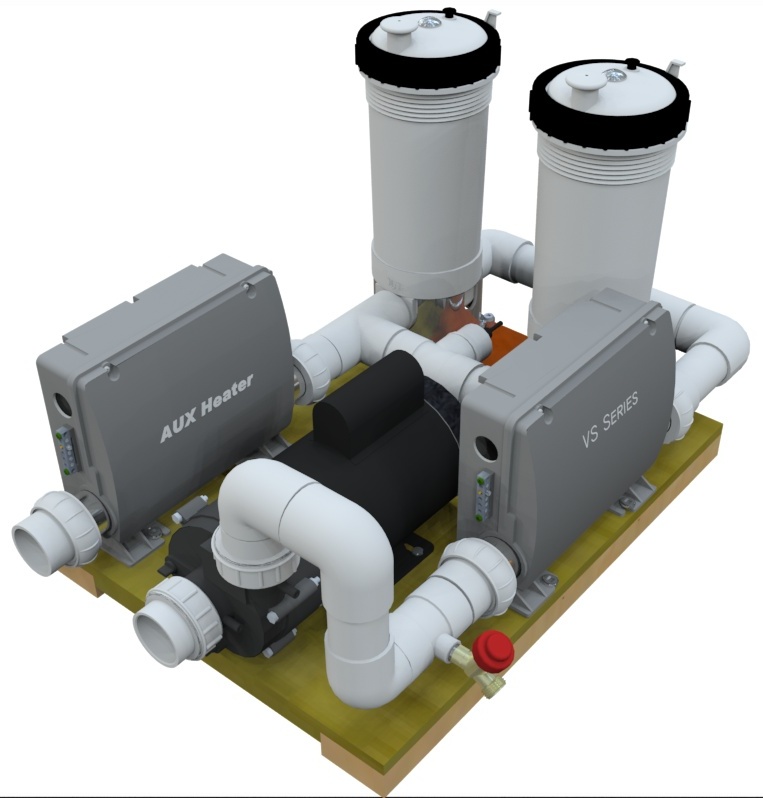

Electric Heating System
Hi-Performance

SPECIFICATION

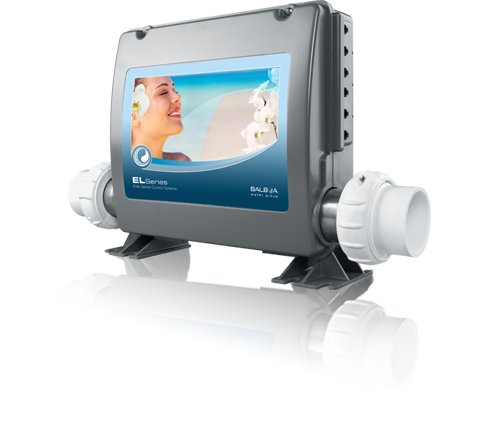

  • Balboa EL2000 Spa Heater with Digital LCD Controller*
  • Balboa Aux 5.5 Kw Heater
  • 11.Kw heating capacity with 220 VAC
  • 16-24 Hydrotherapy Jets
  • 2 x 50 sq. ft. filter
  • 2 x Balboa (1.5 HP, 2 HP, 3 HP) 2 Speed Pumps - 220 VAC
  • Balboa Circulation Pump 1/8 HP - 220 VAC
  • Drain & Fill valve with garden hose attachment
  • 2 x LCD Mood Fx Lights
  • 60 Amp 220 VAC
  • *Available in European system with GL2000 Spa Pack

RECOMMENDED USE

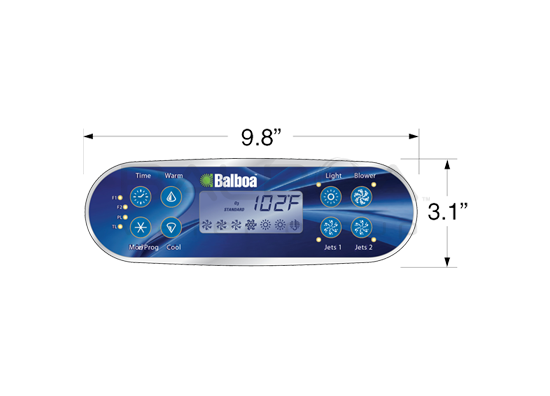

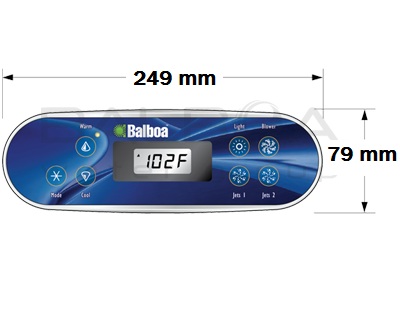

  1. This line is only offered in the large and extra-large tub sizes. They deliver both energy savings & extensive hydrotherapy massage with 12 - 24 jet options. Runs off 230 volts with 50-70A service. Fully controlled by the advanced Balboa EL2000 digital spa pack with 5.5 kW heater and with 8-button top side ML700 LCD control panel. Spa pack upgradeable to BP2000 model which provides wireless access using iPhone App.
  2. Energy Efficiency, Full Hydrotherapy Massage!
  3. 220 VAC
