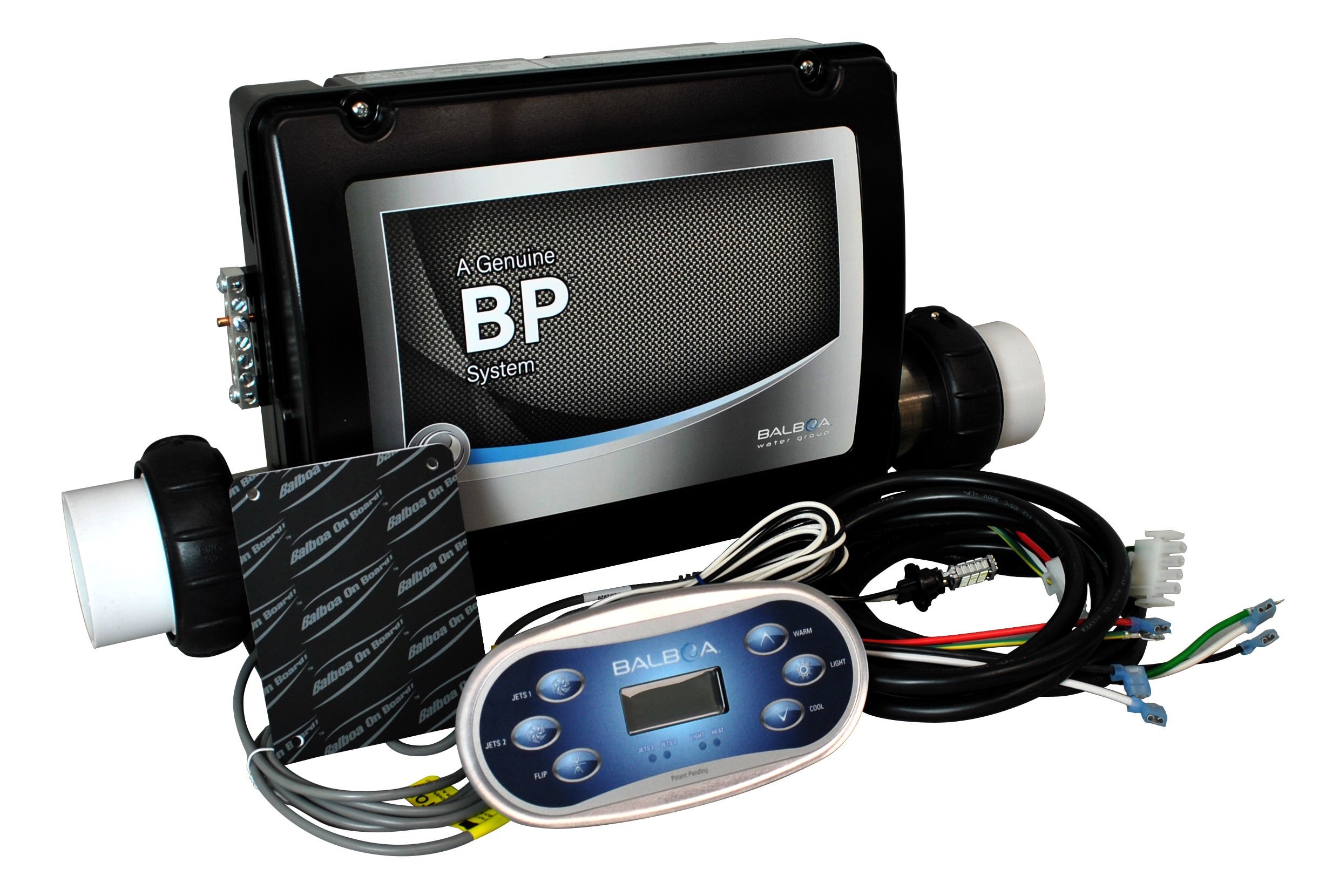

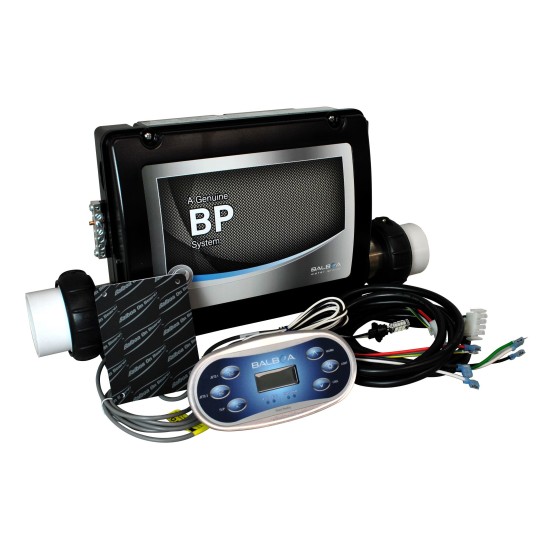

Balboa BP501 Retro Fit Kit - Spa Pack with TP600 Controller cables and Wi Fi

$1,085.21

Product Code: KIT-RETROFIT-BP501-TP600-WI
Availability: 12

Description

BALBOA BP501 RETROFIT KIT - With Wi-Fi Receiver

5.5KW DIGITAL SPA CONTROLLER - WITH WI-FI (BALBOA CONTROLMYSPA™)

Made in America Includes TP600 Top Side Controller

Although this spa pack can work at 120 VAC in which case it will produce 1.5 Kw of heat, it is primarily expected that it will be used at 230 VAC (requiring 30-50 AMP service) and will produce 5.5 kW of heat. One or more auxiliary heater, each producing 4.0 kW or 5.5kW can be slaved to the unit if more power is required. It's union tail pieces (included) fit standard 2" piping or with reducers can be easily adapted to 1.5".

Built in programmable features such a 12 or 24 hour filter cycle programming by duration or time of day, various power saving modes including standard, economy, and standard in economy mode, ozone suppression, clean up cycle, freeze protection, panel lock, temperature lock, standby mode for filter changes and sophisticated diagnosis and reminder measures are just some of the features. It also has the ability to select how much current will be drawn allowing a breaker as low as 30 Amp, yet still deliver the full 5.5 kW of electric heat.

The "Premium Interface" Upgrade for 1-2 Pump Spas

Upgrade your aging hot tub with the reliability of Balboa's BP Series, now featuring the premium TP600 Control Panel and built-in WiFi.

The Balboa BP501 Retrofit Kit is the industry's most trusted solution for replacing failed control systems from Gecko, HydroQuip, SpaGuts, and older Balboa units. It takes your "dumb" hot tub and converts it into a modern, smart appliance.

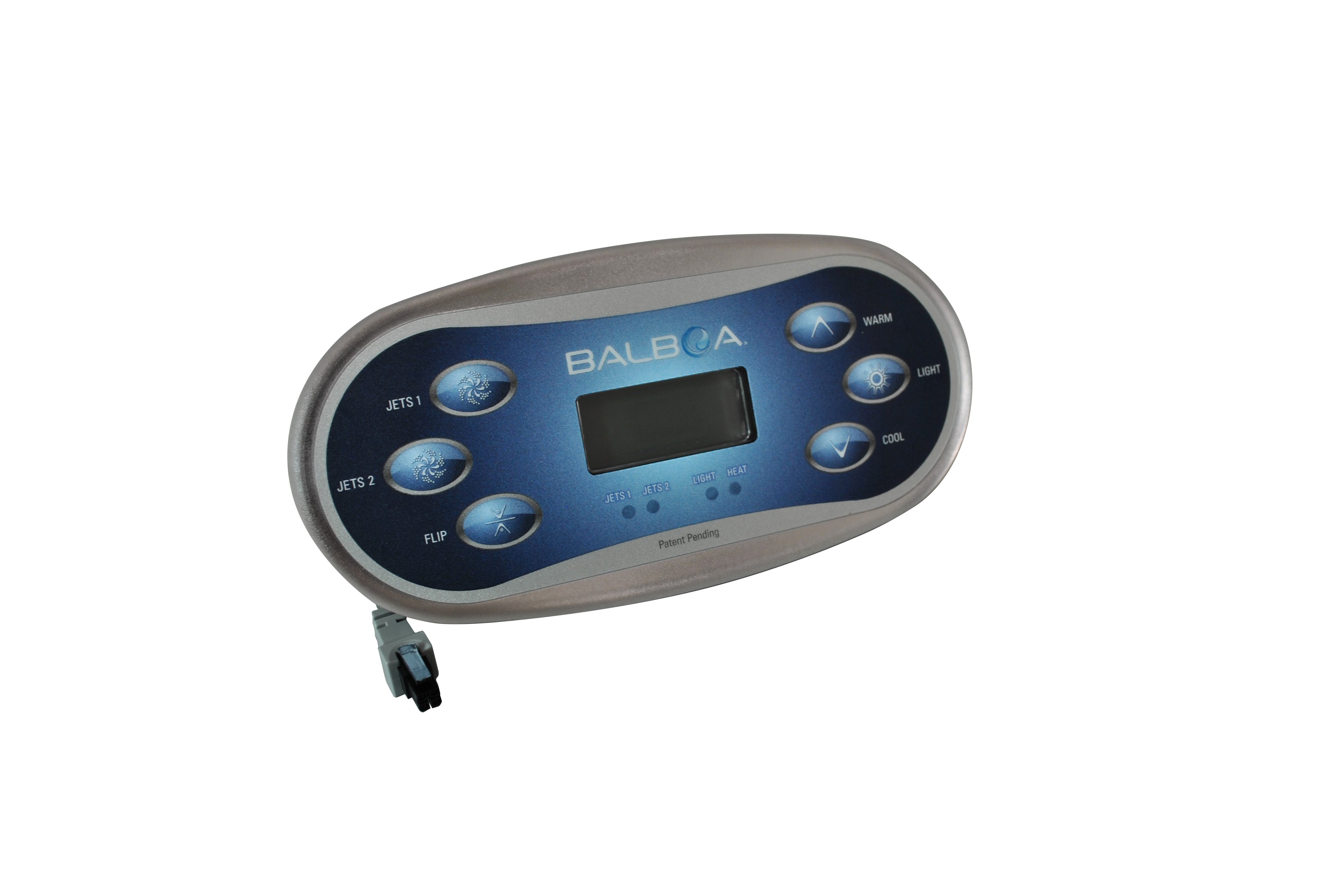

TP600 vs. TP400: What's the Difference?

This kit includes the upgraded TP600 Topside Panel.

Larger Screen: Unlike the smaller TP400, the TP600 features a wide LCD display that makes reading temperature and diagnostics much easier.
6-Button Layout: Dedicated buttons for "Warm" and "Cool" (instead of a single temp button) make adjusting your spa faster and more intuitive.

Is this the right kit for me?

System Capacity: Designed for spas with 1 Pump (2-speed) or 2 Pumps (Pump 1 + Pump 2/Blower).
Smart Ready: Includes the ControlMySpa™ WiFi Module. Control your spa temperature, filtration, and lighting directly from your iPhone or Android device, anywhere in the world.

Incomparable System Reliability

The BP Series is the 1st in a newly designed and improved plat form that focuses on reliability. The BP501 uses a more advance carbon bases casing that is highly flame retardant and impact resistant. New Features such as quick disconnect heater elements, Wi-Fi Ready, and Press and Hold topside navigation buttons.

Retrofit Kit Compatibility

This is a retrofit kit and is designed to replace a complete spa pack with any other manufactures hot tub heating system such as Gecko, Colman, Hydro Quip, Spa Guts, Arctic Spa, LA Spas, Beach Comber, Sundance, Emerald Spas, Maxx Spa, Hydro Spa, Hot Spring to name a few. The retrofit kit comes complete with the digital top side controller, WiFi adapter, and a set of cables for two pumps, and an ozone. Detailed retrofit instructions are also included so that a spa owner can quickly change over to BALBOA the world leader in Spa Heaters.

M7 Technology

The BP Series uses M7 Technology which is simply the best spa pack technology on the market. Completely digital circuitry means less failure, more accurate heating range (+/- 1 degree F). And it now includes both a high range (80-104F) and a low range (50-99 F) operation. The Patented M7 Technology removes the need for pressure sensors and remote heat sensors common on other older spa packs. This unique technology allows the spa pack to be positioned in any location or direction (before or after the pump or before or after the filter).

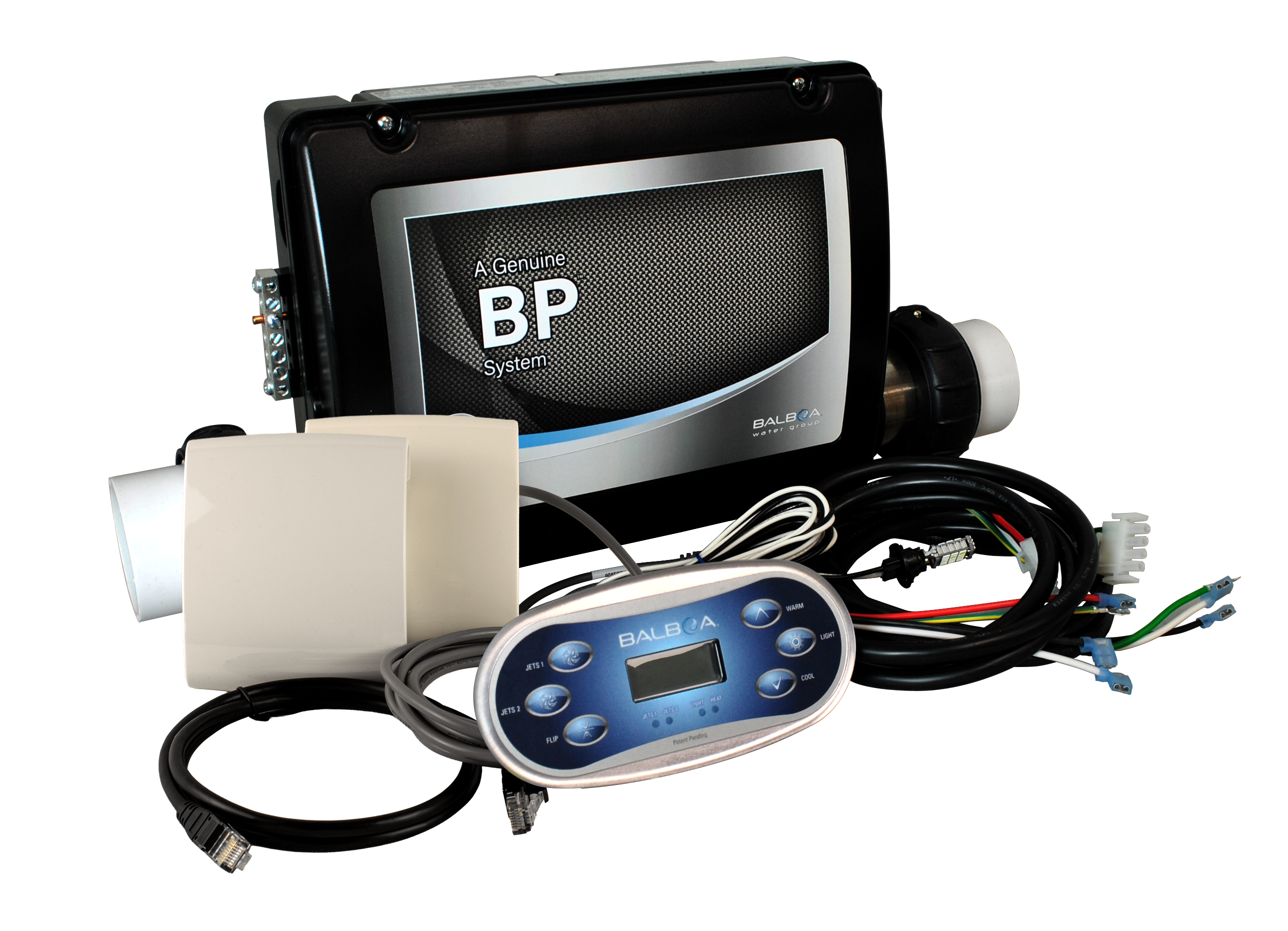

What is Included in the Box?

Everything you need to overhaul your spa's electrical system:

1x BP501G1 Spa Pack: 5.5kW Heater & Control Board (Made in USA).
1x TP600 Topside Panel: Premium 6-Button LCD Display.

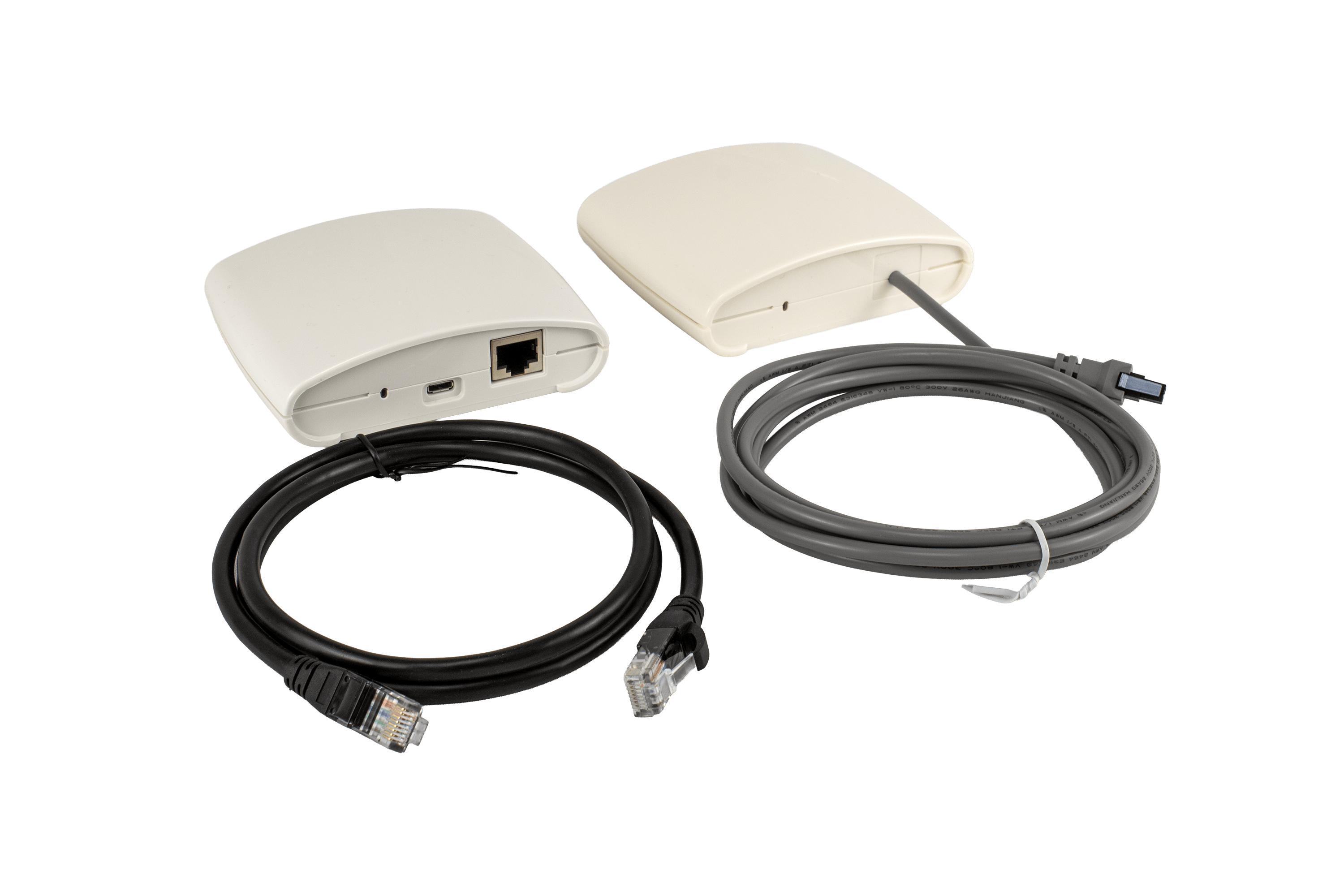

1x ControlMySpa™ WiFi Kit: Gateway Module + Home Router Module.
1x Light Cord: 2-Wire assembly.
1x Pump Cord (4-Wire): For your main 2-Speed Pump.
1x Pump Cord (3-Wire): For a secondary 1-Speed Pump or Blower.
1x Adapter Plate: Covers the hole if your old keypad was larger than the new one.

M7 Technology: Reliability Redefined

No Pressure Switches: Balboa's patented M7 technology uses dual sensors inside the heater tube to monitor flow and temperature. This eliminates the #1 failure point in hot tubs (mechanical pressure switches), preventing "dry fire" heater burnout.
Universal Mounting: The pack can be mounted horizontally or vertically to fit into tight equipment bays.

System Capabilities

Voltage: Convertible 120V (1.5kW Heat) or 240V (5.5kW Heat). Most users run 240V/50A.
Heater: Incoloy 800 Element (Corrosion Resistant).
Programming: Features Standard, Economy, and Sleep modes, plus 12/24 hour filtration cycles to save energy.

Installation Note: While detailed instructions are included, retrofitting a spa pack involves high-voltage wiring. We strongly recommend professional installation by a certified spa technician.

Specifications

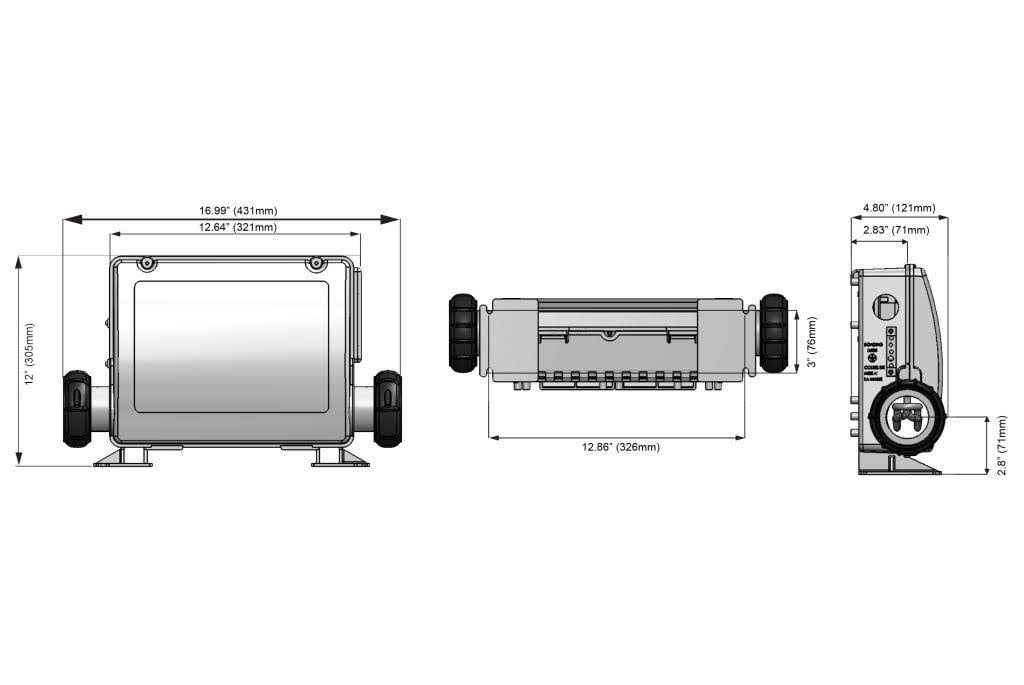

10.56” High x 17” Long x 4.8” Deep
UL/CSA certification
Includes PN# 50056 TP600 Totpside Controller with warm, cool, light, jets overlay
Includes BWA 50350 Wi-Fi Module for use with iPhone, iPad, iPod, or Android device
Includes: 2 sets of pump cables and an ozone cable with AMP connector for Balboa Spa Pack
Includes: Detailed instruction manual for installation to replace another brand of Spa Heater
120 or 230 VAC ozone support (circ pump and ozone must have same voltage)
240VAC @ 60 Hz or 50 Hz, 30-60 Amp 3 wire (needs neutral wire)
High or Low current mode
Max Load ratings: Pump 1= 16 amp; Pump 2/Blower = 12 amp; Ozonator = 1 amp; A/V = 5 amp; Light = 12 v @ 1 amp
The flow through heater tube must be a minimum of 20 USGPM if the heater is 4.0kW. This flow rate should be checked if your spa uses a small circulation pump such a Laing E14 or others made by Grundfos or Waterway Mighty-Might. These small pumps when used with 1” piping typically cannot produce this flow. A 3kW heater element is available which reduces flow requirement to 13 USGPM, call us!
Can only handle 2 pump (Pump One-1 or 2-speed pump | Pump Two- blower or 1- speed pump)
Warranty – 2 years for system including Heater and Serial top-side Panel
