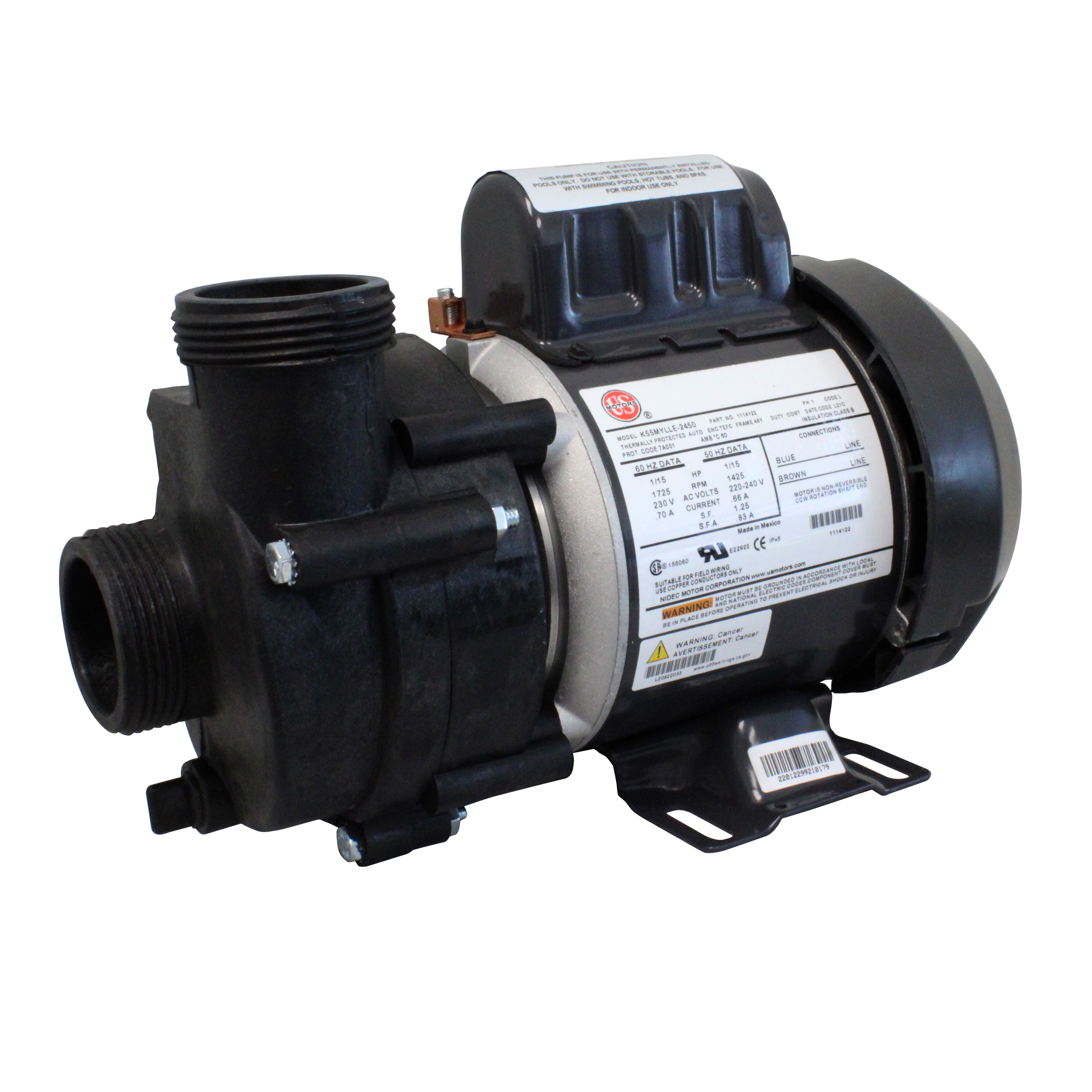

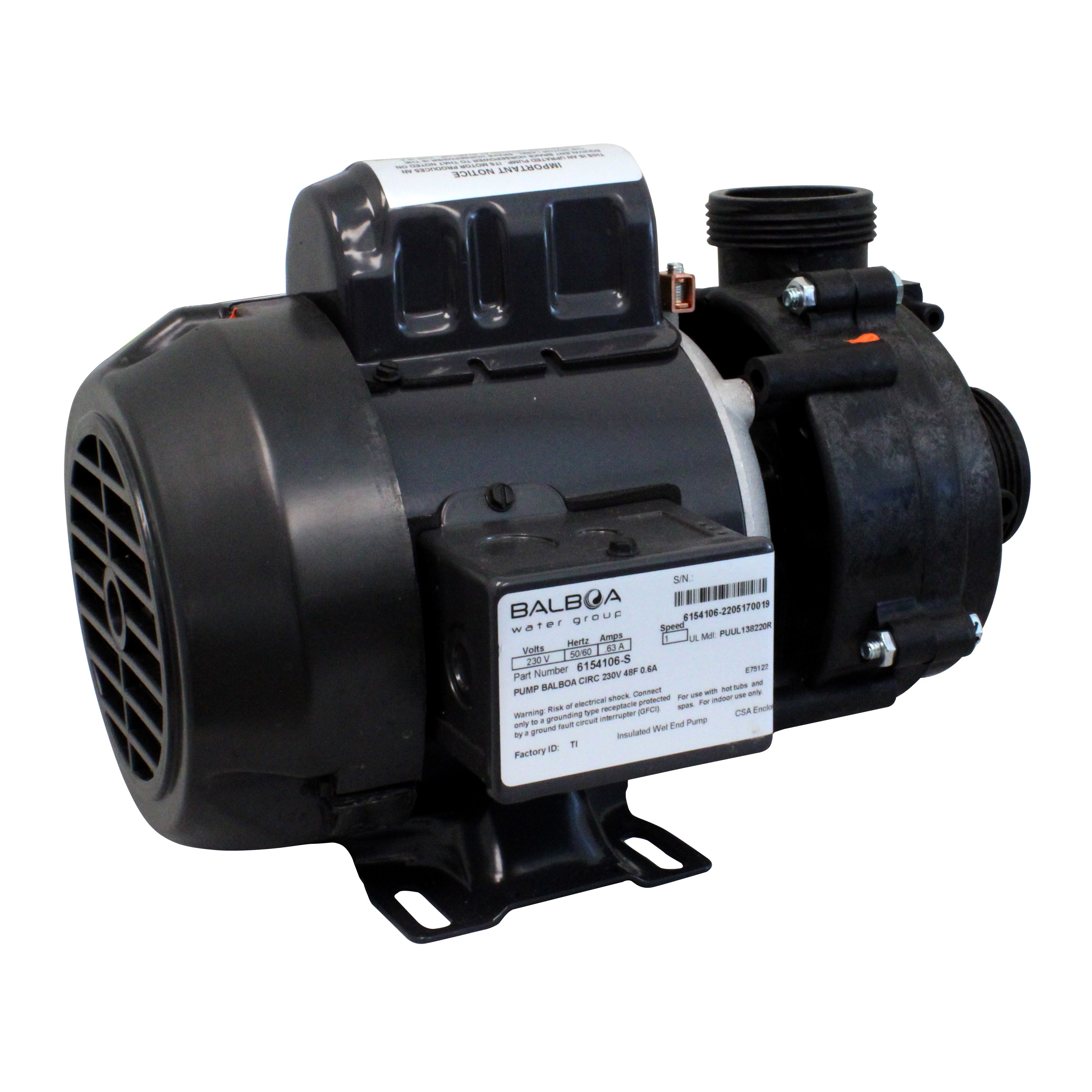

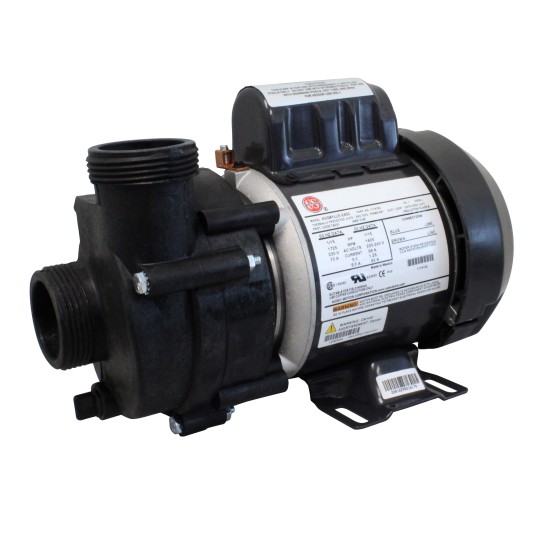

Balboa Circulation Pump - WOW circ hot tub pump - 230 VAC PN: 6154106-S

This ultra quiet hot tub pump circulation pump is one of the most energy efficient pumps on the market. Balboa's Circulation pumps combines the best of two technologies - the proven reliability of the Ultima pump wet end and the dynamic WOW motor that revolutionized the bath market. The high flow circ pump provides up to 67 gallons per minute flow while operating while drawing only .63 amp. These pumps are ideal for whirlpool applications where quiet efficient running circulation is needed. This pump is designed as a circulation pump and used in spas that have a circulation system. It is 1/15 HP single speed and runs off 230 VAC. The low speed circulating pump is used in 2 pump configurations and moves water quietly and continuously through the heating and filter system.

Safety features include auto shut off protection in case of plugged suctions and high heat limit overload protection.

Comes complete with two x 1 1/2" replacement unions that can be easily be expanded to fit larger 2" standard PVC plumbing. Included is a hygienic drain plug that ensures no water is left in the pump body during storage, also preventing freeze damage where applicable. Also included with every UltraJet pump head is their unique venturi by pass ports. By drilling out the inside of these ports water can be by passed and used with accessories such as pump heat jackets or ozone systems.

Direct Replacement For:

This unit (PN 6154106-S) is the direct, updated replacement for older Balboa / UltraJet models:

• PN 1070125U

• PN 1070056 (1/4 HP versions)

Why Choose the Balboa "WOW" Series?

• Incredible Efficiency: Drawing only 0.63 Amps, this pump moves a massive 67 Gallons Per Minute (GPM). It filters your water faster while using less electricity than a standard lightbulb.

• Whisper Quiet: The dynamic motor balancing eliminates the "60-cycle hum" that resonates through wooden decks, ensuring your spa experience remains peaceful.

• Auto Shut-Off Protection: The pump is smart. If it detects a plugged suction or dry-run condition, it automatically shuts down to prevent the motor from burning out.

Advanced "Tech" Features

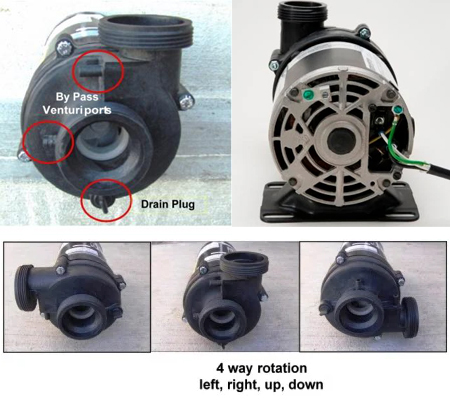

• Venturi Bypass Ports: The pump head features drillable ports. These allow you to bypass a small amount of water to feed accessories like Ozonators or heat jackets without complex plumbing tees.

• Hygienic Drain Plug: Designed to fully evacuate water from the pump body during winterization, preventing freeze damage and bacterial growth during storage.

Comes with 1 1/2" Pump Unions

Technical Specifications:

• amps = .63 amps
• rpm = 1725 rpm
• HP = 1/15
• 115 VAC 60 Hz, 1 speed
• frame = 48 short
• length = 10.5"
• height = 7.5"
• port opening = 1 1/2"
• warranty = 2 years
• Part Number: 6154106-S
• Voltage: 230V (Check your current pump label!).
• Amperage: 0.63 Amps
• Horsepower: 1/15 HP
• Flow Rate: Up to 67 GPM (High Flow)
• Plumbing: Includes 1.5" Pump Unions (Expandable to 2" with adapters).
• Frame: 48 Frame Short
