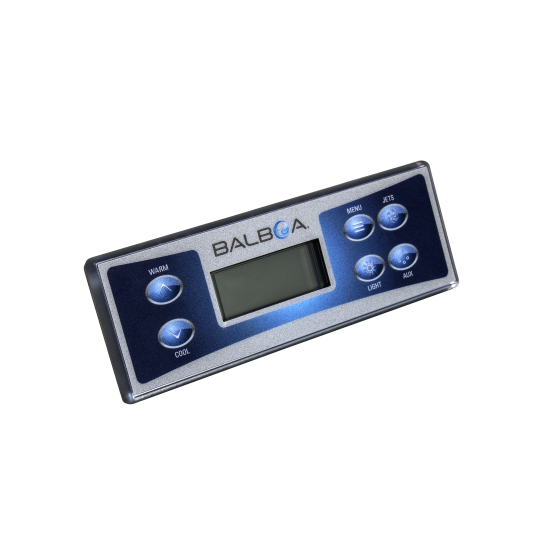

Balboa TP500 LCD 6-Button Panel PN 57237-01

Balboa 6-Button TP500 Panel with Standard Layout Overlay

Streamlined Control for BP Series Systems

Is your hot tub display cracked, foggy, or unresponsive? Restore full control to your spa with the Balboa TP500, the sleek and simplified interface designed for modern Balboa BP Series spa packs.

This PN 57237-01 is the genuine OEM replacement. It features a crisp LCD screen that is easy to read even in bright sunlight or steamy conditions. Unlike older panels with complex menu diving, the TP500 supports the "Simplified Menu" structure, making it intuitive for any user to change temperature or filtration cycles.

Compatibility Guide

This panel is designed exclusively for Balboa BP Series systems.

• Works with: BP501, BP601, BP2000, BP2100, and other "BP" model simplified systems.

• Connector: Uses the standard 4-Pin Molex (TP Style) connector that plugs directly into the circuit board.

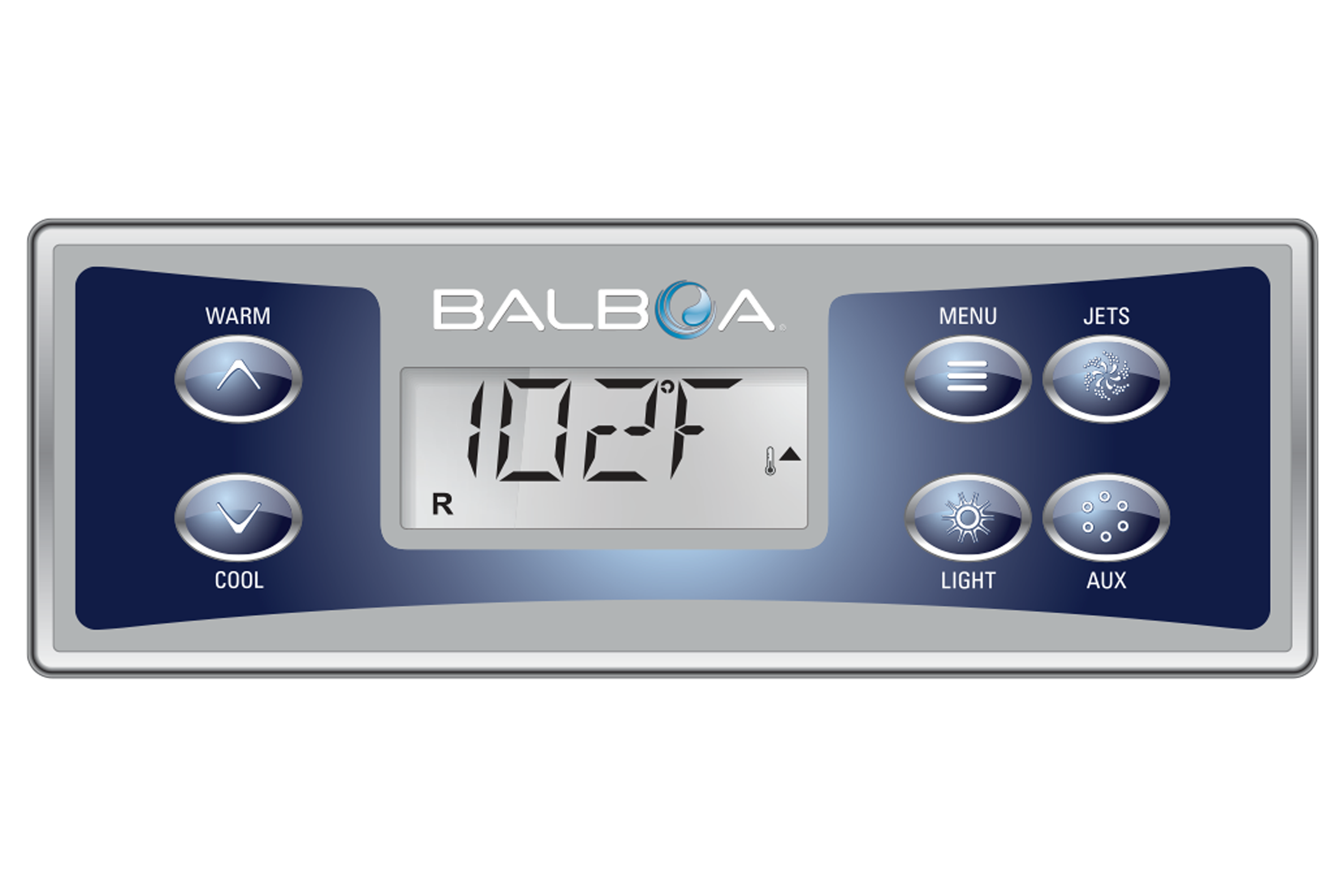

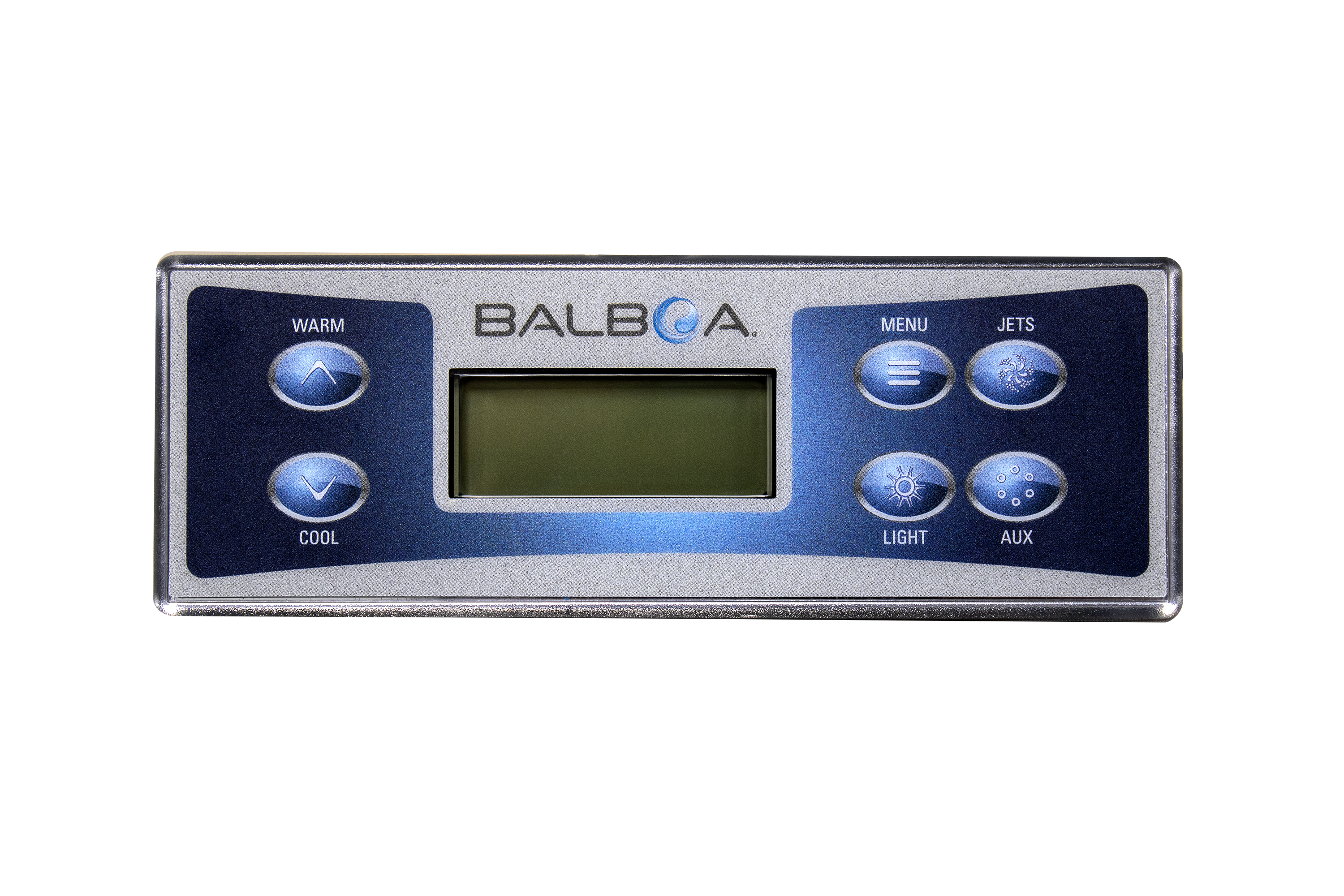

6-Button "Standard" Layout

This unit comes complete with the overlay (sticker) featuring the standard 6-button configuration:

1. Warm: Increase Temperature

2. Cool: Decrease Temperature

3. Menu: Access Settings (Filter cycles, Time, etc.)

4. Jets: Pump 1 Control

5. Light: Lighting Control

6. Aux: Auxiliary (Pump 2 or Blower)

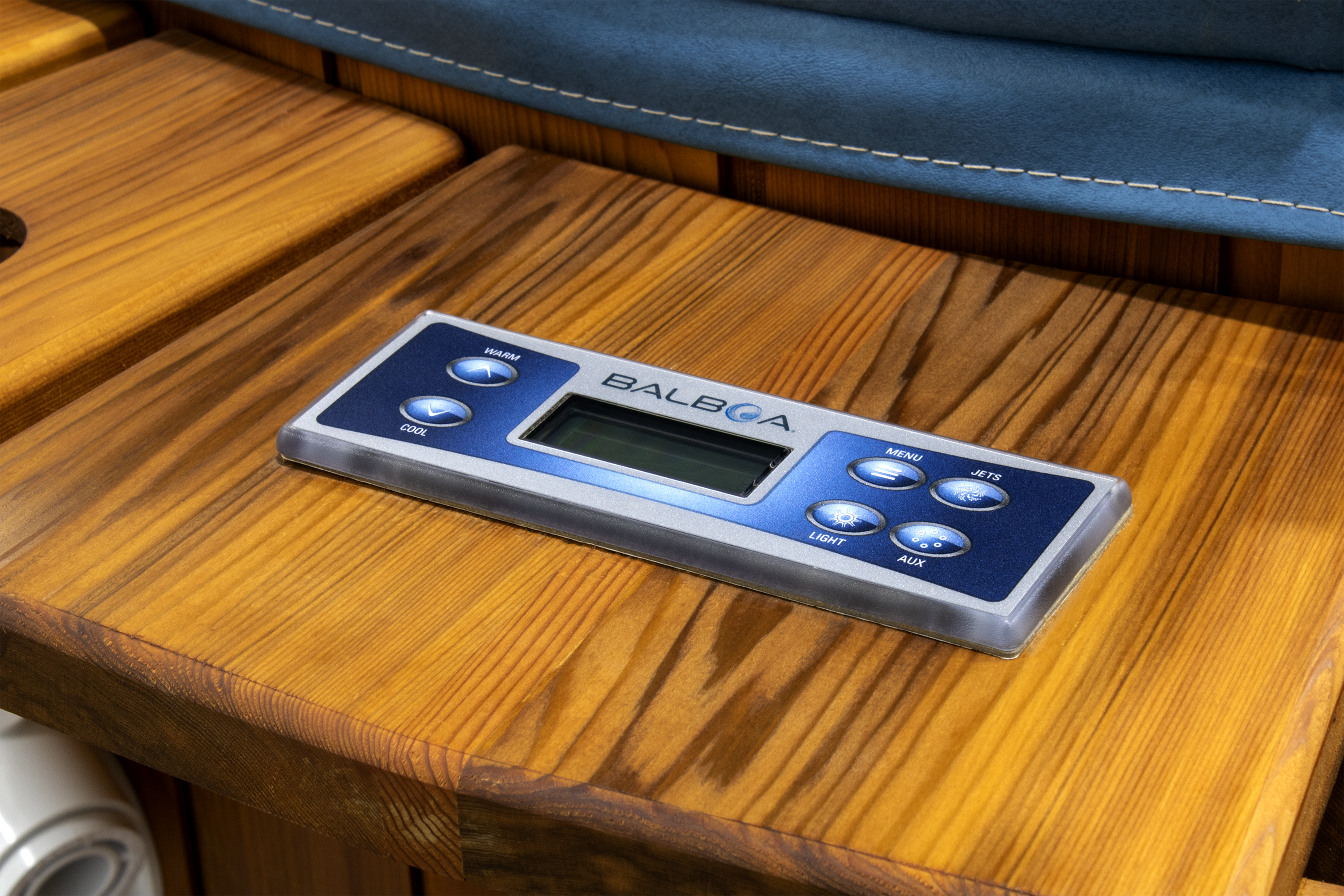

Installation & Fit

• Plug & Play: Includes a generous 7-foot cable, allowing you to route the wire through the spa cabinet easily.

• Compact Design: The unobtrusive size fits many standard spa lips.

  • Faceplate Width: 6-5/16" (160mm)

  • Faceplate Height: 2-1/4" (57mm)

Specifications

• Part Number: 57237-01

• Model: TP500

• Display: Digital LCD

• Buttons: 6

• Cable Length: 7 Feet

• Connection: 4-Pin Molex

• Origin: Made in Mexico

Tech Note: Please verify your spa pack model before ordering. This panel is NOT compatible with older "VS" or "EL" series packs, which use standard phone-jack style connectors.
