BP501G1 Balboa Replacement Spa Circuit Board - PN G1351

BP501G1 BP5X REPLACEMENT MAIN BOARD

Comes with 1 year warranty

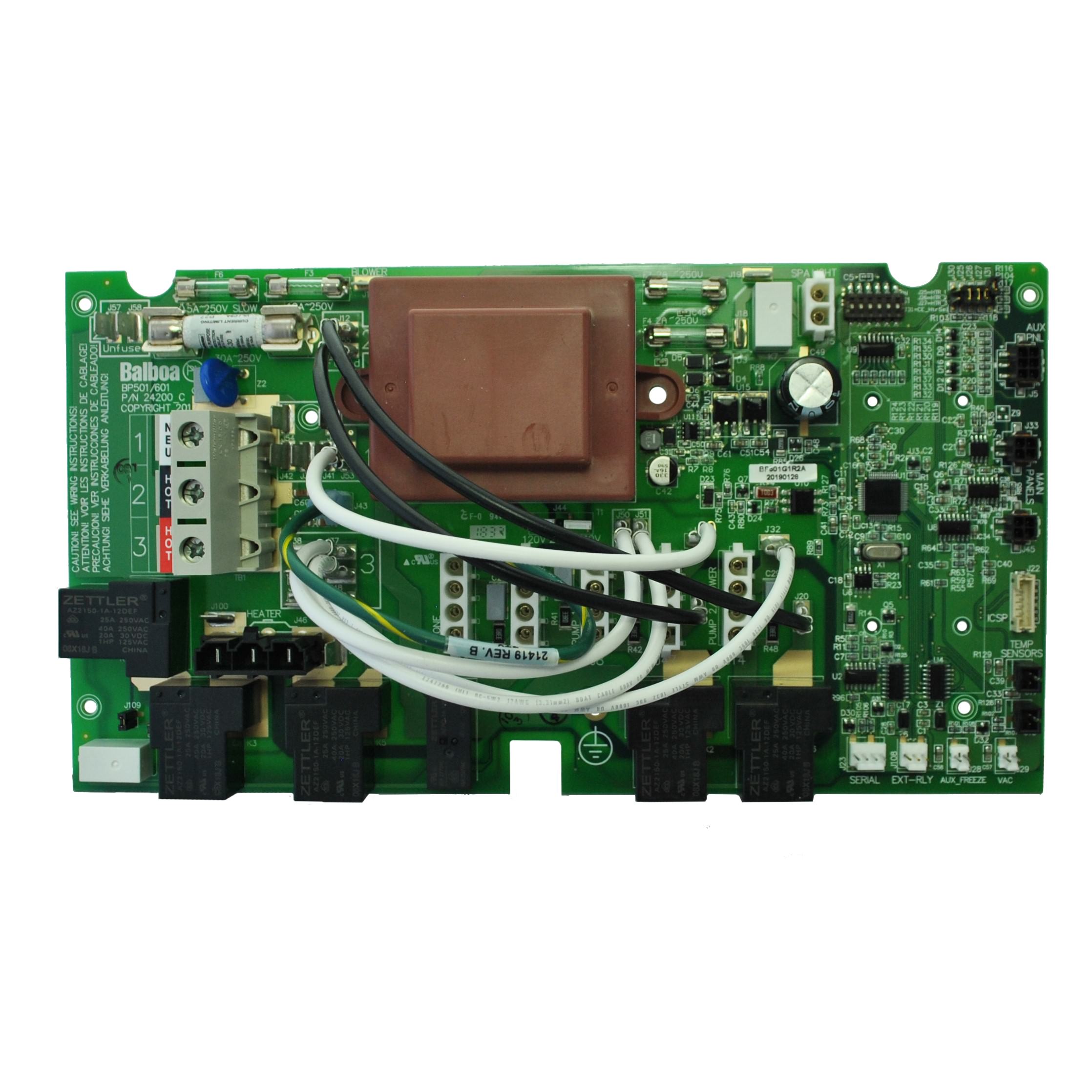

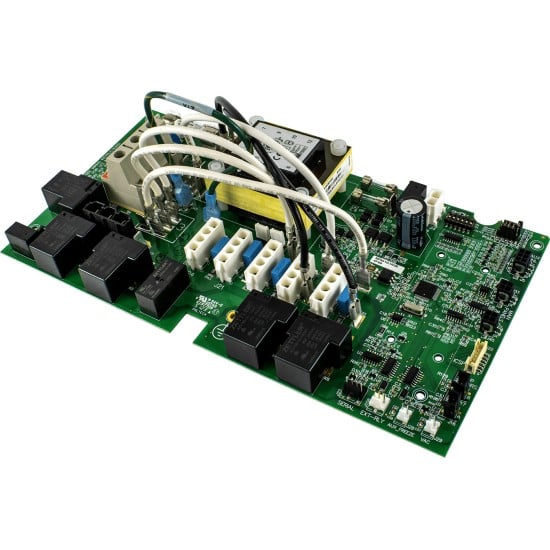

Balboa P/N 56944-01 Replacement Circuit Board for BP501G1 Spa Pack

PN 56944-01 is the latest BP5X version of the circuit board used in BP501G1 spa packs. Comes in factory default setup # 01.
Setup #, dip switches and white receptacle voltage select jumpers will need to be adjusted to match the setting of your original board.
Comes with 1 year warranty.

The Genuine "Brain Transplant" for Your Spa Pack

If your hot tub heater isn't firing, your pumps are acting erratic, or you have a "burned spot" on your current motherboard, you don't always need to buy a whole new control system. You can simply replace the Main Circuit Board.

This is the Genuine Balboa 56944-01, the latest BP5X Version board designed specifically for the BP501G1 Control System.

Compatibility Check

• Check your Board: Look for the white sticker on your current green circuit board. It should read 56944 (or similar versions like 56944-01, -02).

• Check your Box: This board is the internal replacement for the Balboa BP501G1 System (often labeled System PN: G1351 on the outside of the plastic enclosure).

• Note: Compatible with TP Series Topside Panels (TP400, TP600).

Critical Installation Advice: "It's not Plug & Play"

Please Read Before Buying:

Unlike simple mechanical parts, this computer board requires configuration.

1. Factory Default: The board ships in Setup #01.

2. The "Setup Number": Your spa might be configured for "2 Pumps + Blower" or "1 Pump + Ozone." You MUST match the "Setup Number" in the software to your specific equipment, or the pumps won't turn on.

3. Dip Switches & Jumpers: You must manually move the copper jumpers (for Voltage Select) and adjust the Dip Switches (for Amperage) to match the settings of your Old Board. Take a picture of your old board before removing it!

Why Choose Genuine Balboa?

• Latest Firmware: This is the updated "BP5X" version, which includes improved logic for heating efficiency and diagnostics compared to older revisions.

• M7 Technology: Fully supports Balboa's patented M7 sensors, eliminating the need for failure-prone pressure switches.

Specifications

• Balboa Part Number: 56944-01

• System Model: BP501G1

• Board Series: BP5X

• Voltage: Supports 120V / 240V configurations (Field Configurable).

• Warranty: 1 Year Manufacturer Warranty.

Installation Note: Circuit boards are static sensitive and involve high voltage. We highly recommend installation by a certified spa technician. Incorrect wiring can instantly short-circuit the board and void the warranty.
