CMP Fiberglass Main Drain Suction 2" - White PN-CMP-25215 W

C$38.00

  • Product Code: PN-CMP-25215 W
  • Availability: 52

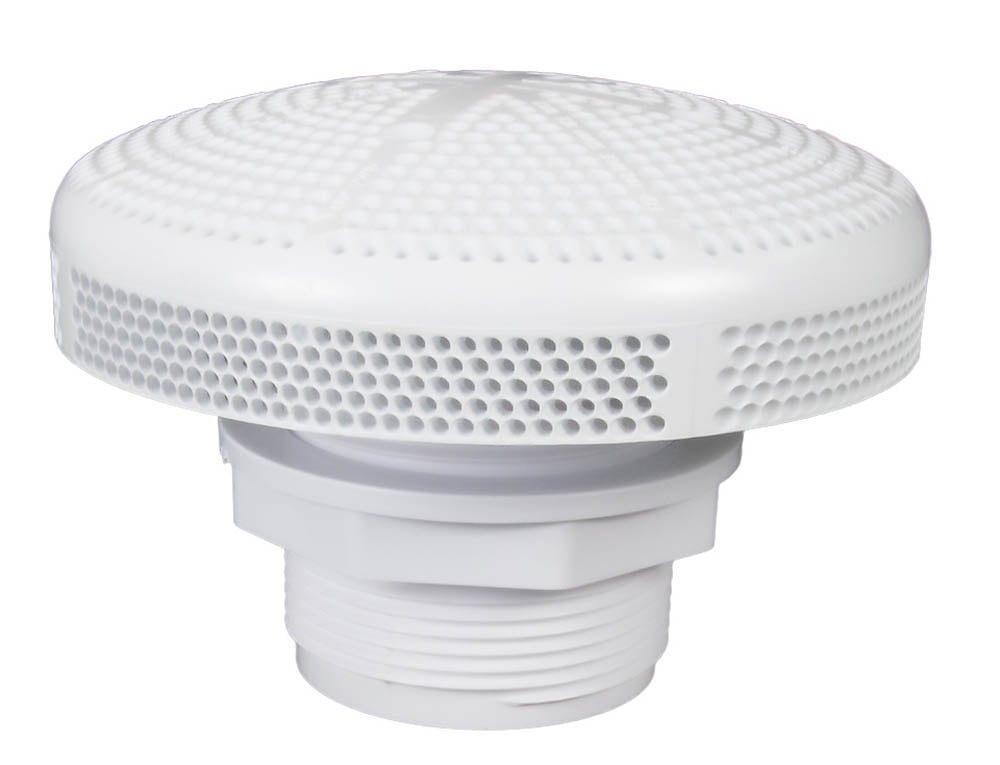

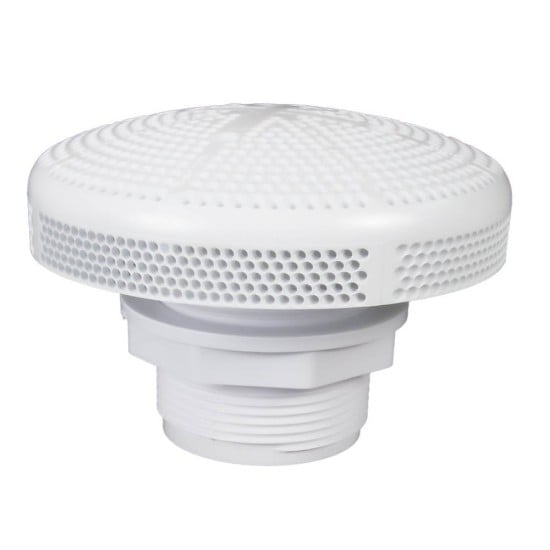

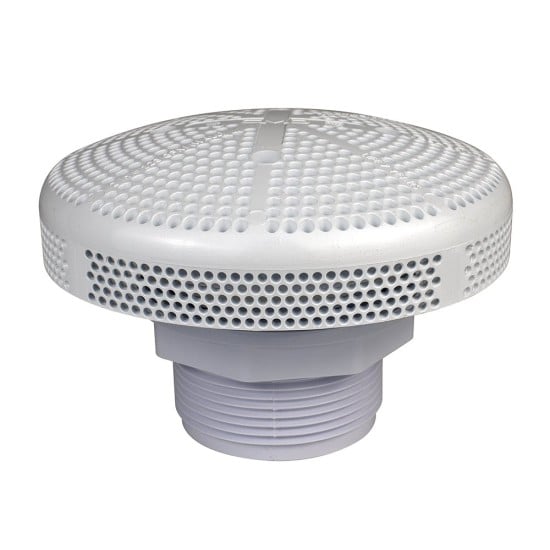

CMP FIBERGLASS MAIN DRAIN SUCTION 2" - WHITE

PN: 25215

CMP Suction Drain

Universal hot tub/pool suction.

  • Plumbing Size: 2" Socket (Outside threaded for installation nut)
  • Hot Tub Install Port Size: 3"
  • Floor Flow Rate: 128 GPM
  • Wall Flow Rate: 124 GPM
  • Drain Cover Life: 7 Years. Replace drain cover and screws every seven years
  • Wall Fitting Body Life: 30 Years
  • Multiple drain use ONLY
  • Floor or wall installation
  • PVC Wall Fitting. Use PVC glue to attach plumbing fittings

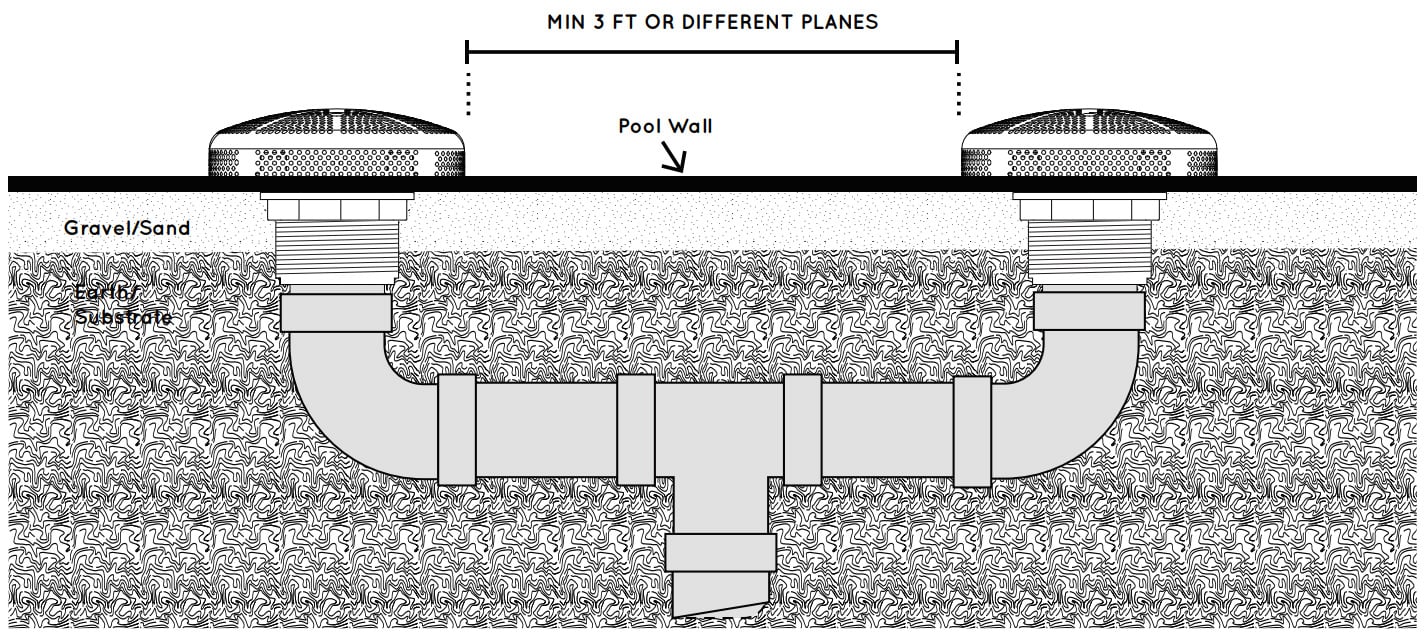

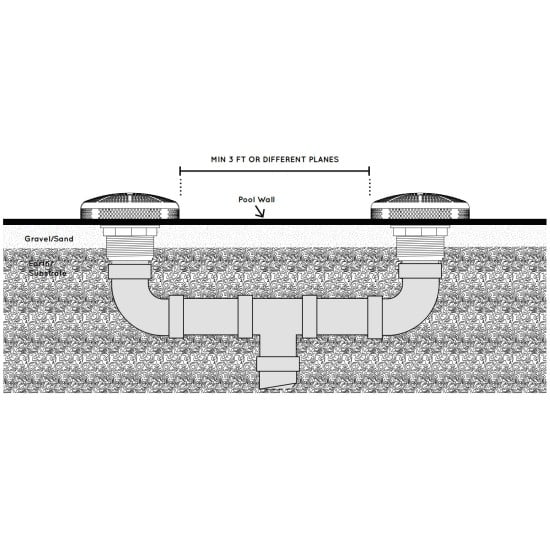

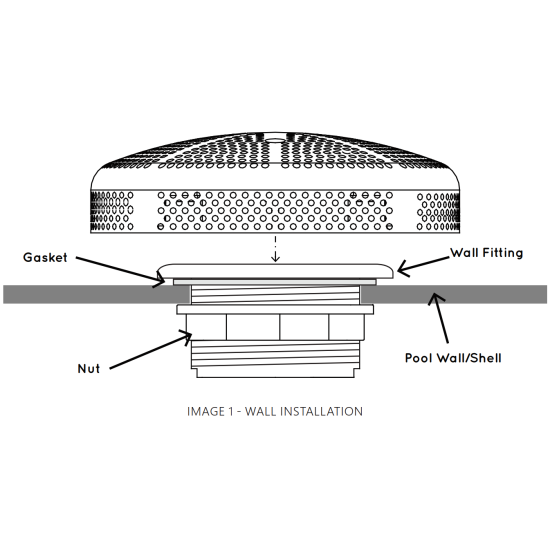

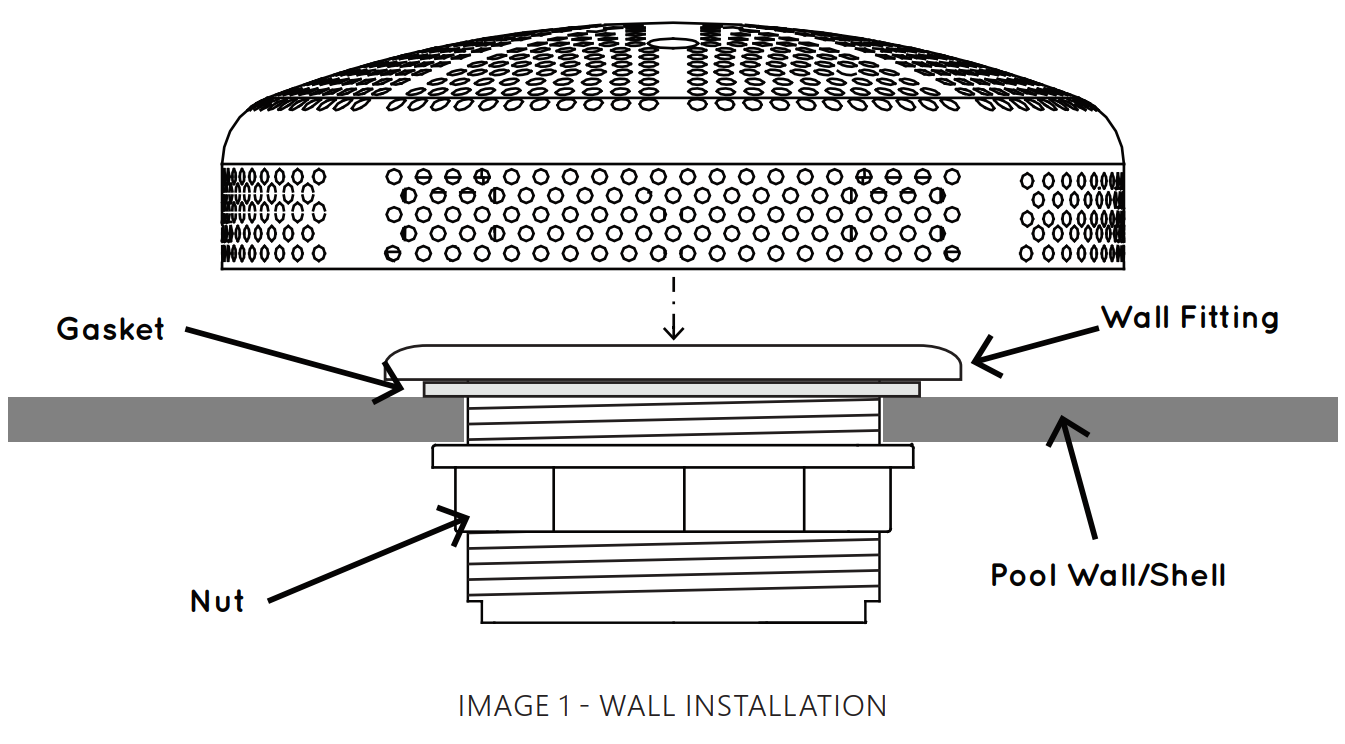

Installation

Installation
CMP Suction Multiple Install

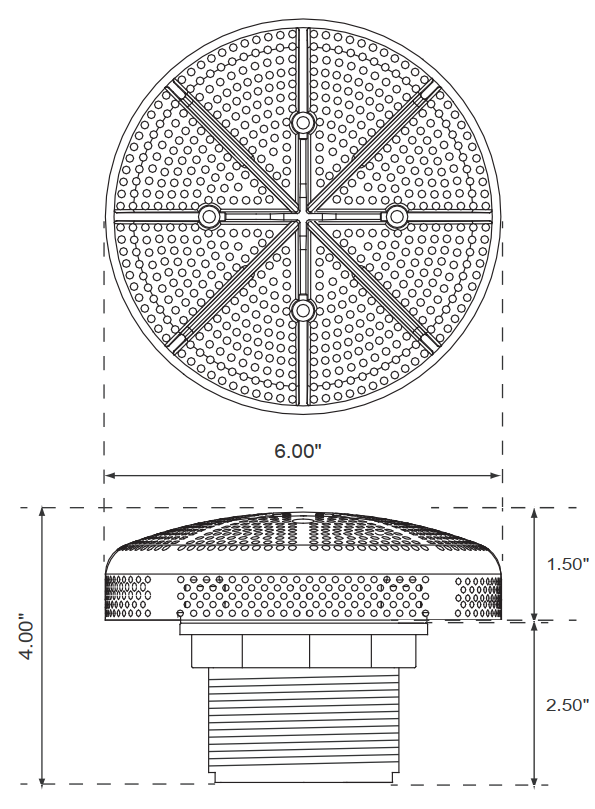

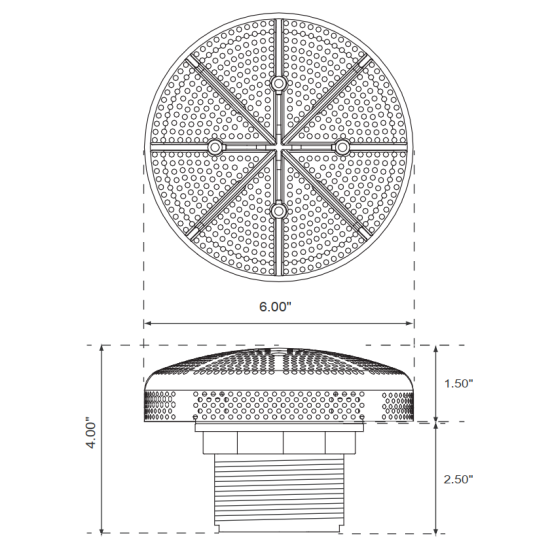

Dimensions

CMP Suction Dimensions

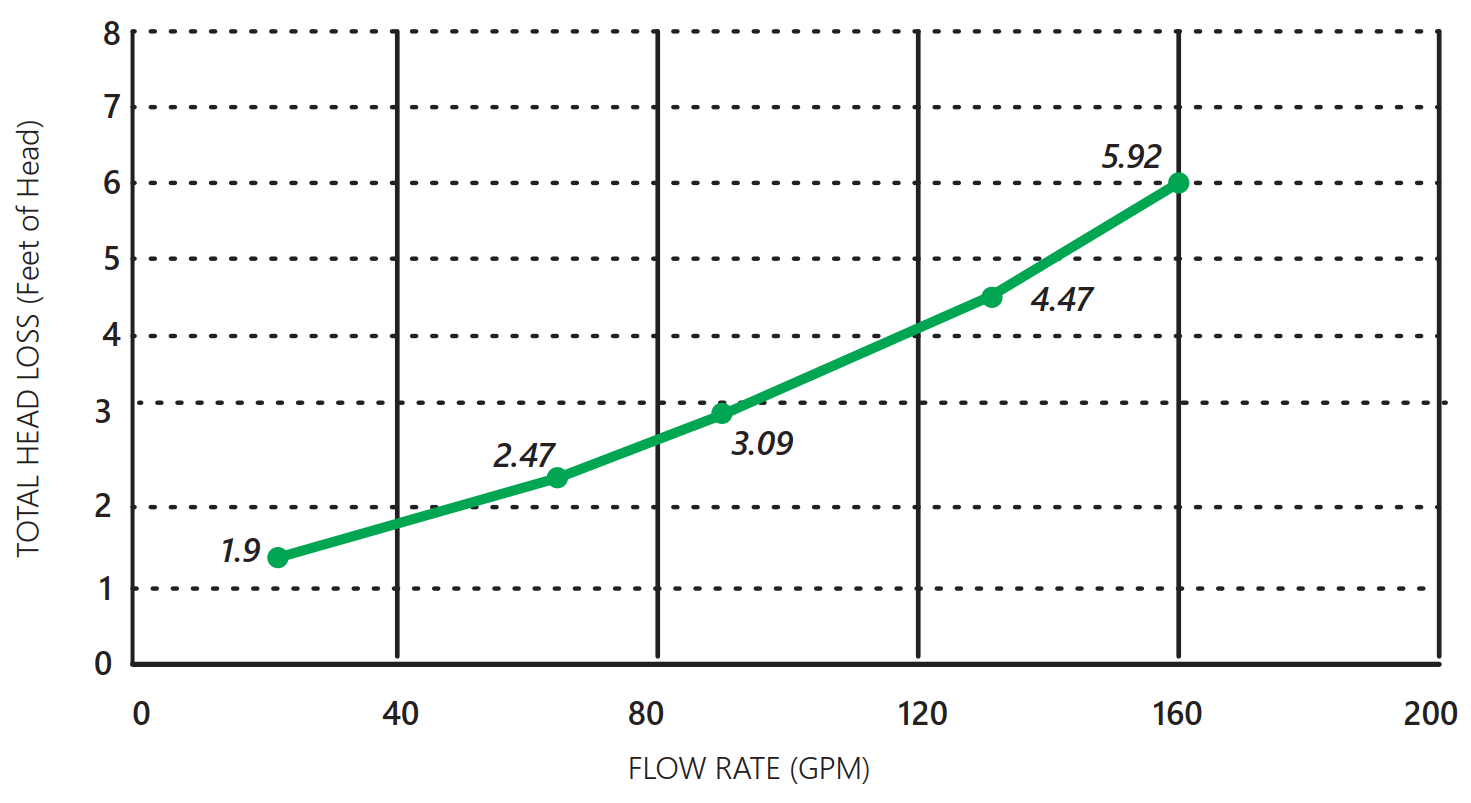

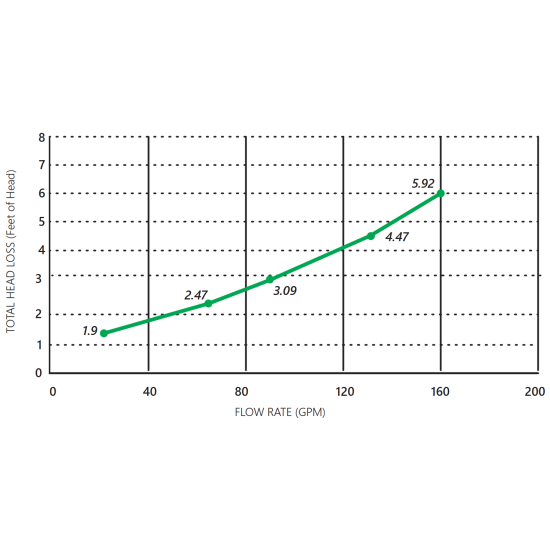

Head Loss

Head Loss

Owners Manual for additional information

×
