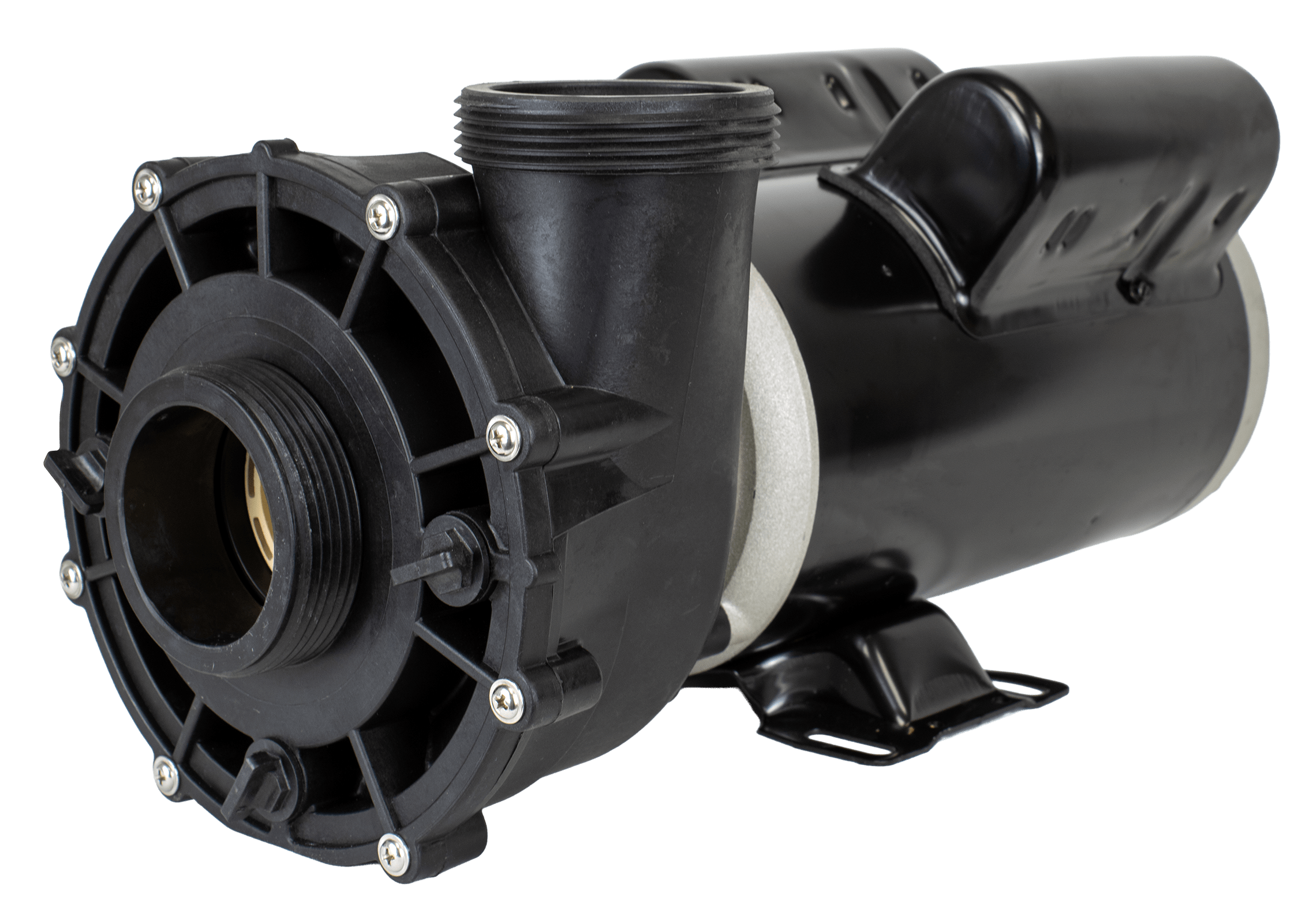

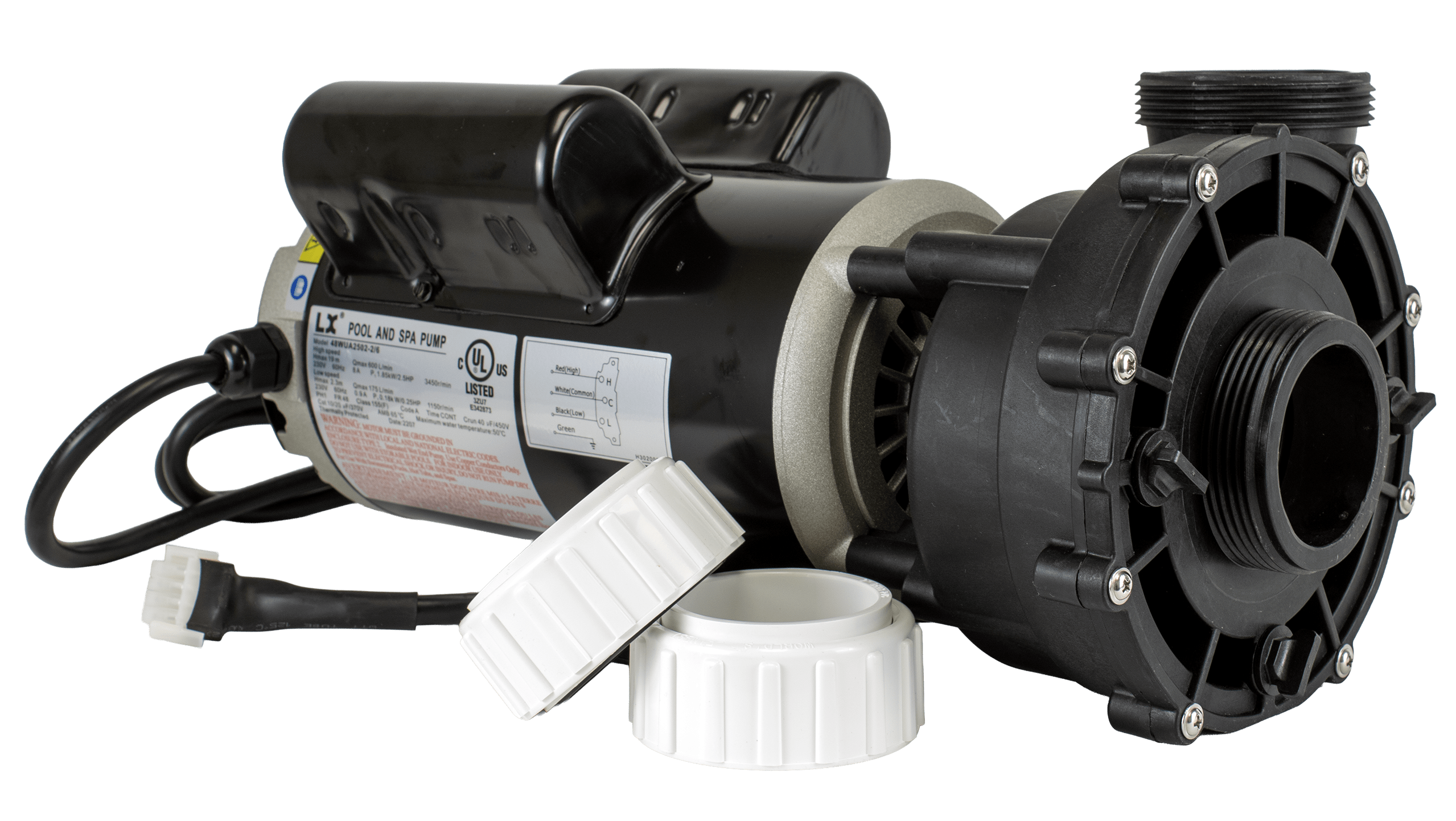

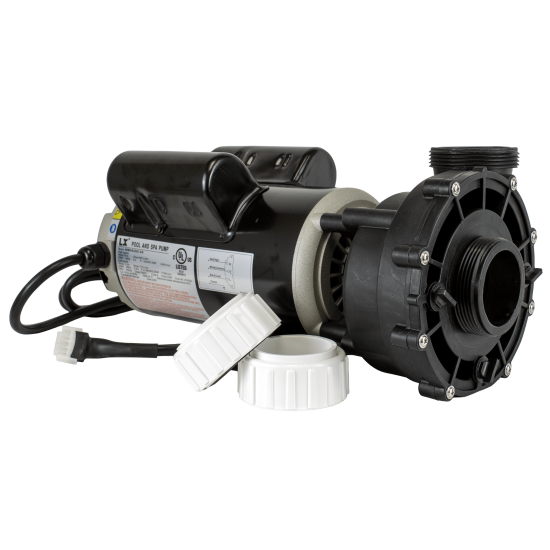

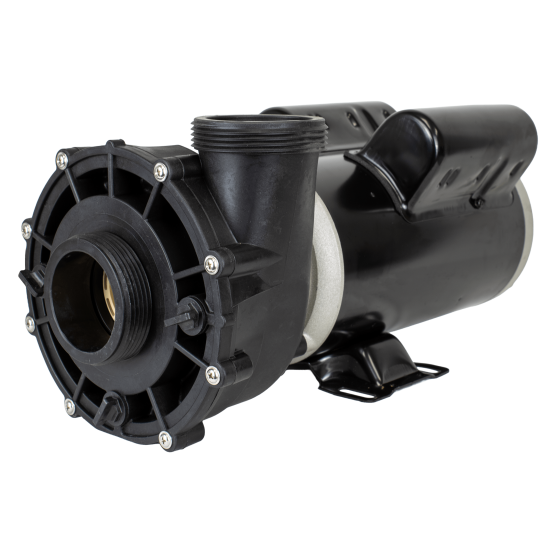

LX 2.5HP 2 Speed Pump - 230V 8.0/0.9A - 2"

LX 2 Speed Pump - Model 48WUA2502-2/6

Pump unions included

Two Speed LX SPA Pool Pump: WUA series spa pool pump is a 2 speed pump designed for SPAs. WUA series can achieve high-speed for massage and low speed for filter cycle functions. 2” inlet and outlet for high-performance and low-noise, perfected for SPA system and swimming pool. Pump housing features 90° flexible installation for various pipe layouts. Wet end is made of high reinforced engineering plastic; applied mechanical seal ensures watertight for continuous extended operation.

Motor: Fan cooled, high and low dual-speed motor with 56 frame. Dual-speed motor is low-noise and low-vibration with durability that is specialized for SPA and swimming pool pumps. Insulation class F, protection IPX5, continuous duty. Single-phase with thermal protector from T1 to ensure safety and convenience in operation.

Specifications

• Model: 48WUA2502-2/6
• 230V 60Hz
• Frame 48
• Max Water Temp 50C/122F

High Speed

• 8A
• 1.85KW/2.5HP
• 3450 r/min
• Hmax: 19 m
• Qmax 600 L/min

Low Speed

• 0.9A
• 0.18KW/0.25HP
• 1150 r/min
• Hmax: 2.3 m
• Qmax: 175 L/min
