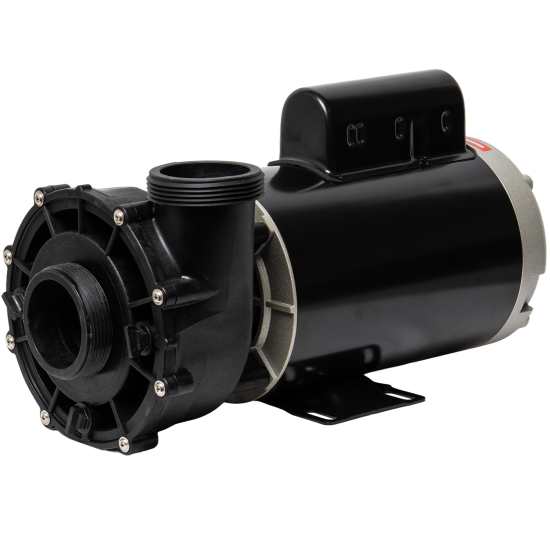

LX 3.5 HP 2 Speed Spa Pump 2" - 230V 11/3.5A - 56WUA350-II

LX 3.5 HP 2 Speed Spa Pump 2" - 230V 11/3.5A - 56WUA350-II

56WUA350-II LX 2 Speed Pump

Replacement LX Spa Pump for 3.5 HP, 230V, 2-speed spa systems. UL Listed.

Two Speed LX SPA Pool Pump: WUA series spa pool pump is a 2 speed pump designed for SPAs. WUA series can achieve high-speed for massage and low speed for filter cycle functions. 2” inlet and outlet for high-performance and low-noise, perfected for SPA system and swimming pool. Pump housing features 90° flexible installation for various pipe layouts. Wet end is made of high reinforced engineering plastic; applied mechanical seal ensures watertight for continuous extended operation.

Motor: Fan cooled, high and low dual-speed motor with 56 frame. Dual-speed motor is low-noise and low-vibration with durability that is specialized for SPA and swimming pool pumps. Insulation class F, protection IPX5, continuous duty. Single-phase with thermal protector from T1 to ensure safety and convenience in operation.

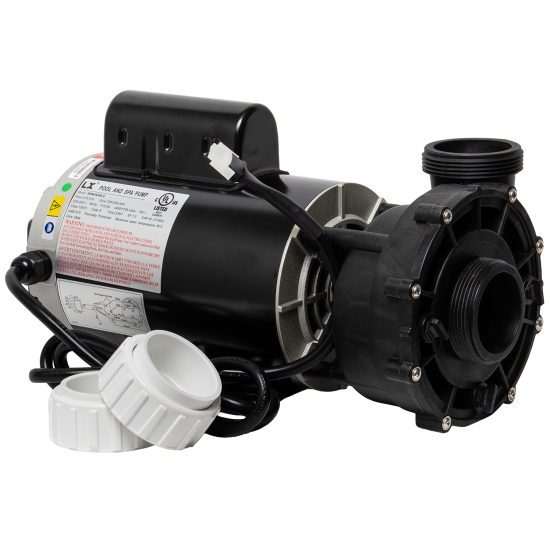

Includes 2" pump unions and 4-Pin amp cable

Specifications:

• Speed: 2
• Voltage: 230V 60Hz
• Amperage: 11A/3.5A
• RPM: 3450/1725 rpm
• Frame: FR 56
• Connection: 2" inlet/outlet
