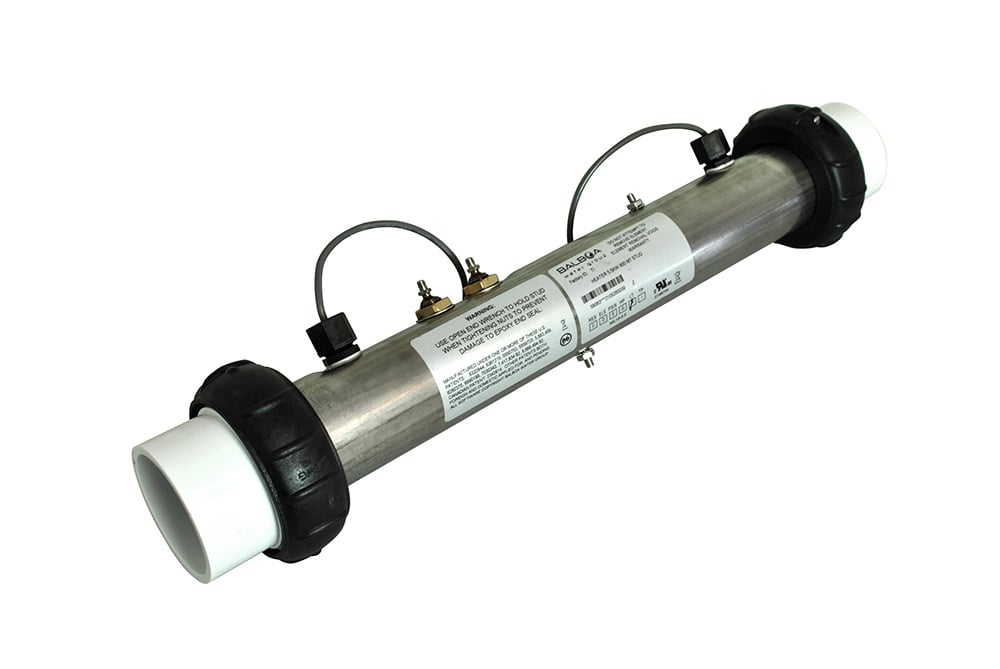

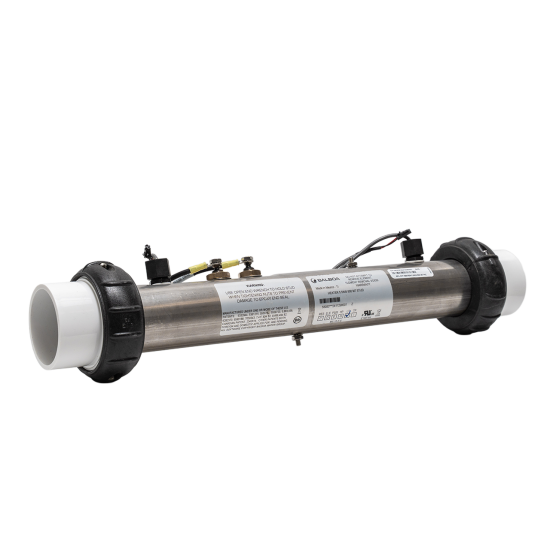

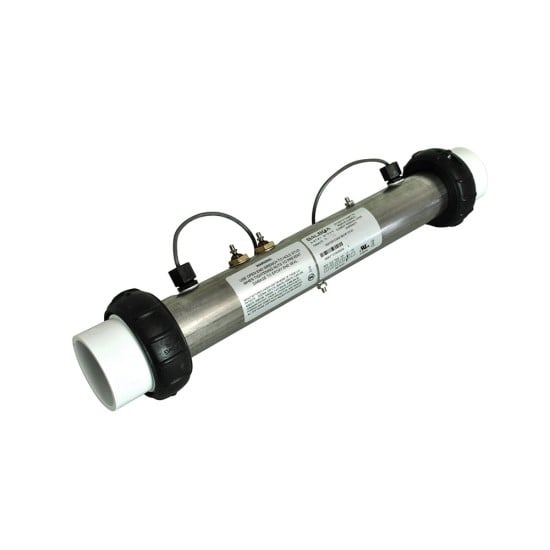

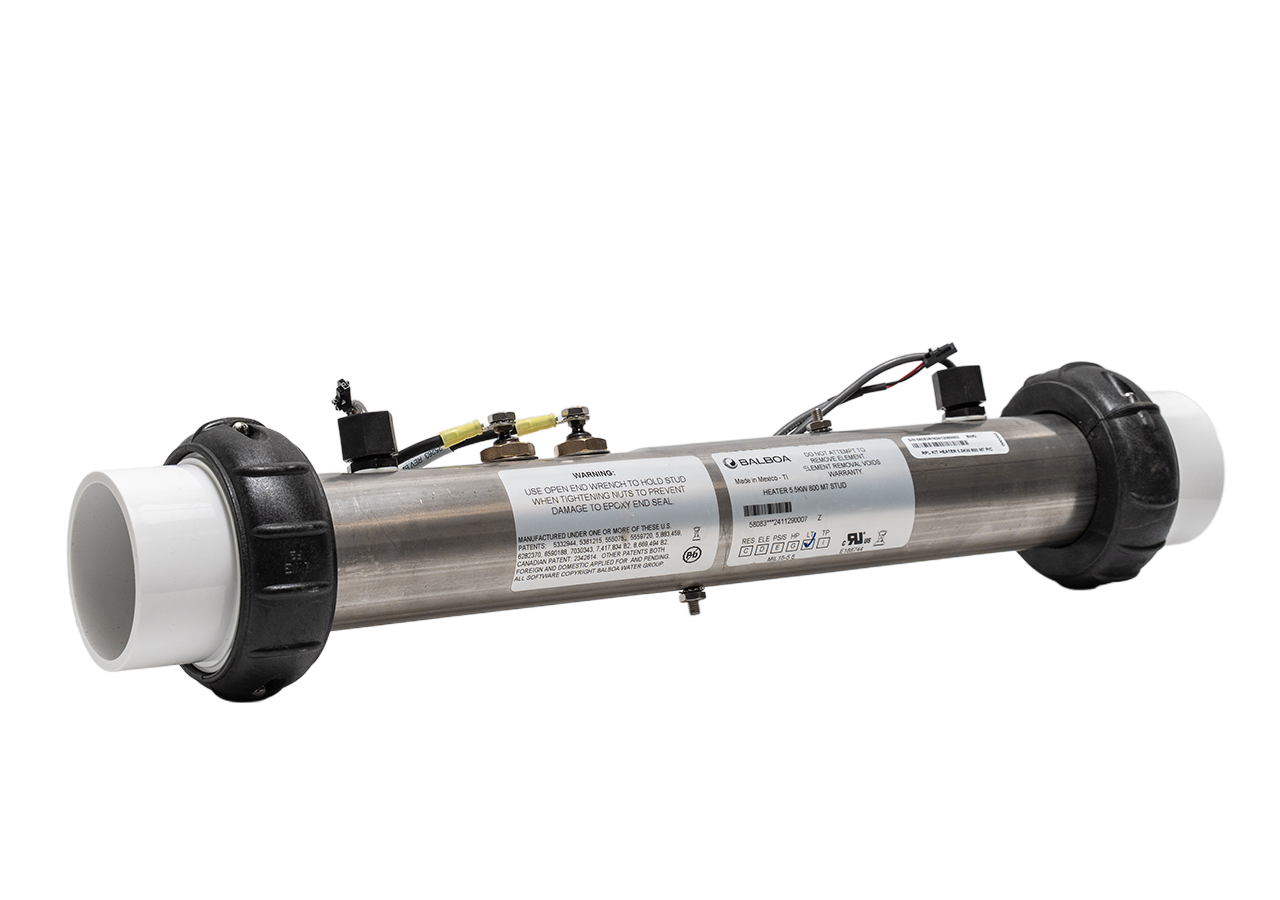

Balboa 5.5 Kw Heater Tube assembly + sensors PN G7512 replaces 58083

BALBOA 5.5 KW HEATER TUBE ASSEMBLY + SENSORS PN G7512 REPLACES PN 58083

BALBOA P/N G7512 REPLACES PN 58083 REPLACEMENT HEATER ASSEMBLY WITH SENSORS AND 5.5 KW 240V HEATER ELEMENT

PN #G7512 is the most common heater tube assembly used in Balboa's VS and EL, and BP line of spa packs. This unit comes complete with sensors. Heater tube is 800 Incoloy and is in a Stainless Steel Tube 2" dia x 15" long. Heater element produces 5.5 kW at 240 V and 1.375 kW at 120V. 2" slip tail pieces, gaskets and split ring nuts are supplied. Comes with 1 year warranty.

The Industry Standard "Drop-In" Replacement

If you own a hot tub built in the last 20 years with a Balboa control system, this is likely the heater you need.

The Balboa G7512 is the direct, updated replacement for the famous 58083 heater assembly. It is the standard 15-inch heater found on virtually all VS, EL, GS, and BP Series spa packs.

Complete "Ready-to-Install" Kit

Don't waste time trying to salvage old parts. This is a factory-assembled unit that includes everything you need for a leak-free installation:

• M7 Sensors Included: Comes with two new temperature/flow sensors pre-installed (one on each end).

• New Unions: Includes fresh split-nuts and gaskets to ensure a tight seal against your plumbing.

• Stainless Housing: Standard 15" x 2" Stainless Steel tube.

Performance: 5.5kW High Output

This unit features a high-grade Incoloy 800 element.

• Rapid Heating: At 240V, it delivers a full 5.5 kilowatts of heat, capable of raising water temperature quickly even in freezing conditions.

• 120V Conversion: If your spa is plugged into a standard wall outlet (Plug & Play), this same heater will automatically run at 1.375 kW.

Compatibility Check

This heater fits almost all Balboa M7 Control Systems, including:

• BP Series: BP501, BP2000, BP601

• VS Series: VS500, VS501, VS510, VS520

• EL/GL Series: EL2000, GL2000

• GS Series: GS501, GS510

• Dimensions: Length must be 15 inches (approx. 38cm) from flange to flange.

Specifications

• Part Number: G7512 (Replaces 58083, 58000, 58010, 58121, 58089)

• Wattage: 5.5 kW @ 240V / 1.375 kW @ 120V

• Element: Incoloy 800 (Scale & Corrosion Resistant)

• Dimensions: 15" Length x 2" Diameter

• Sensors: M7 Dual Sensors Included (24" Wires)

Warranty: 1 Year Manufacturer Warranty

The G7512 Balboa Spa Heater Assembly is the current replacement heater tube for all 5.5 Kw EL, VS, BP spa packs.
