Balboa Circulation Pump - Circ Hot Tub Pump - 115 VAC - PN 6154113-S
$262.78
- Product Code: KIT-BALBOA-CIRC PUMP 115V
- Availability: 1

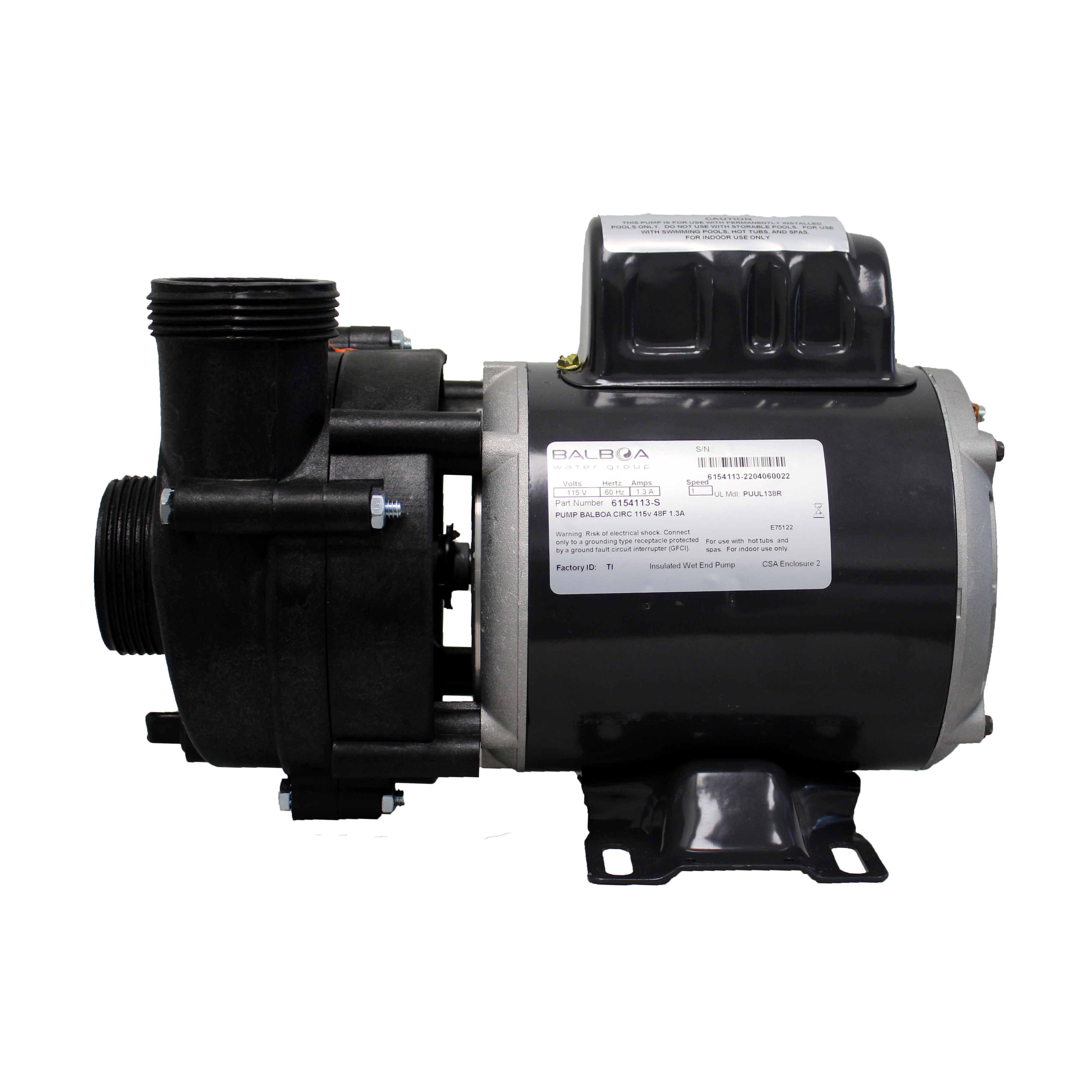

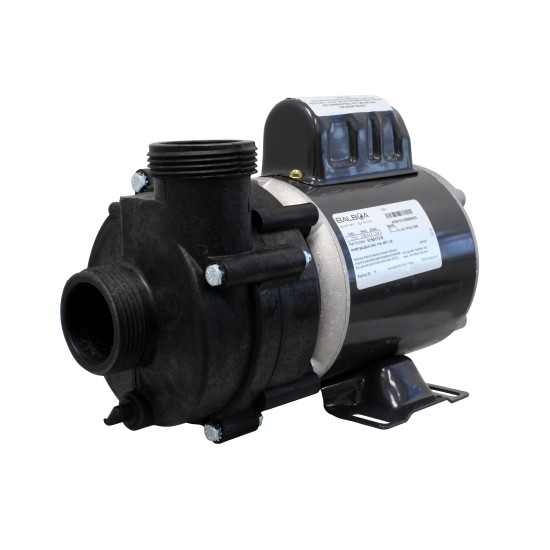

BALBOA SPA CIRCULATION PUMP- 115V 1.3A
PN 6154113-S
Balboa circulating 115 VAC Hot Tub Pump, Ultra Quiet!
Comes with 1.5 inch Pump Unions
The "Silent Workhorse" That Runs 24/7 for Pennies a Day
If your hot tub has a dedicated circulation pump, it runs 24 hours a day to keep your water filtered and heated. Because it never turns off, you need a pump that is two things: Silent and Energy Efficient.
The Balboa 115V Circulation Pump is the industry leader in both categories.
Combining the legendary reliability of the Ultima Wet End with the advanced engineering of the WOW Motor, this pump delivers a massive 67 Gallons Per Minute (GPM) of flow while drawing a miserly 1.3 Amps of power.
Why Choose the Balboa "WOW" Series?
-
Whisper Quiet: Designed specifically for "Whirlpool" applications where noise is unacceptable. The vibration-dampening motor design means you won't hear a hum resonating through your deck or floor.
-
Safety First: Features built-in Auto Shut-Off Protection. If your suction gets blocked or the pump runs dry, it senses the heat rise and shuts down before the motor burns out.
-
Compact Power: The "48 Frame Short" design allows it to fit into tight equipment bays where larger pumps won't go.
Dimensions
-
Length: 10.5"
-
Height: 7.5"
-
Motor Frame: 48 Short (Approx. 5.85" Wide)
Installation Advice
-
Orientation: This pump is designed for horizontal mounting.
-
Wiring: As with all spa pumps, it comes with a cord but may require you to reuse your existing plug/connector depending on your spa pack type.
This ultra quiet hot tub pump circulation pump is one of the most energy efficient pumps on the market. Balboa's Circulation pumps combines the best of two technologies - the proven reliability of the Ultima pump wet end and the dynamic WOW motor that revolutionized the bath market. The high flow circ pump provides up to 67 gallons per minute flow while operating while drawing only 1.3 amp. These pumps are ideal for whirlpool applications where quiet efficient running circulation is needed. This pump is designed as a circulation pump and used in spas that have a circulation system. It is 1/15 HP single speed and runs off 120 VAC. The low speed circulating pump is used in 2 pump configurations and moves water quietly and continuously through the heating and filter system.
Safety features include auto shut off protection in case of plugged suctions and high heat limit overload protection.
The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.
If you are looking for the best most reliable hot tub pump on the market then look no further. Balboa is the largest pool and spa plumbing manufacture in the world and the UltraJet line of spa pumps are simply the finest.
Comes with 1 1/2" Pump Unions
Technical Specifications:
- amps = 1.3 amps
- rpm = 1725 rpm
- HP = 1/15
- 115 VAC 60 Hz, 1 speed
- frame = 48 short (5.85" wide motor by 5.5 long)
- length = 10.5
- height = 7.5"
- port opening = 1 1/2"
- warranty = 2 years
- Part Number: 6154113-S
- Voltage: 115V / 120V (Note: Check your current pump label. If it says 230V, this unit will NOT work).
- Amperage: 1.3 Amps
- Horsepower: 1/15 HP
- Flow Rate: Up to 67 GPM (High Flow)
- Speed: 1725 RPM (Single Speed)
- Plumbing: Includes 1.5" Pump Unions (Fits standard 1.5" PVC pipe).
Warranty: Backed by a 2-Year Manufacturer's Warranty (covers both motor and wet end).
×
