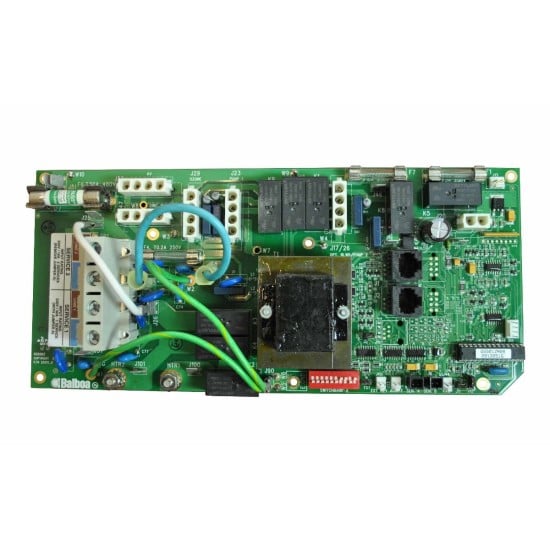

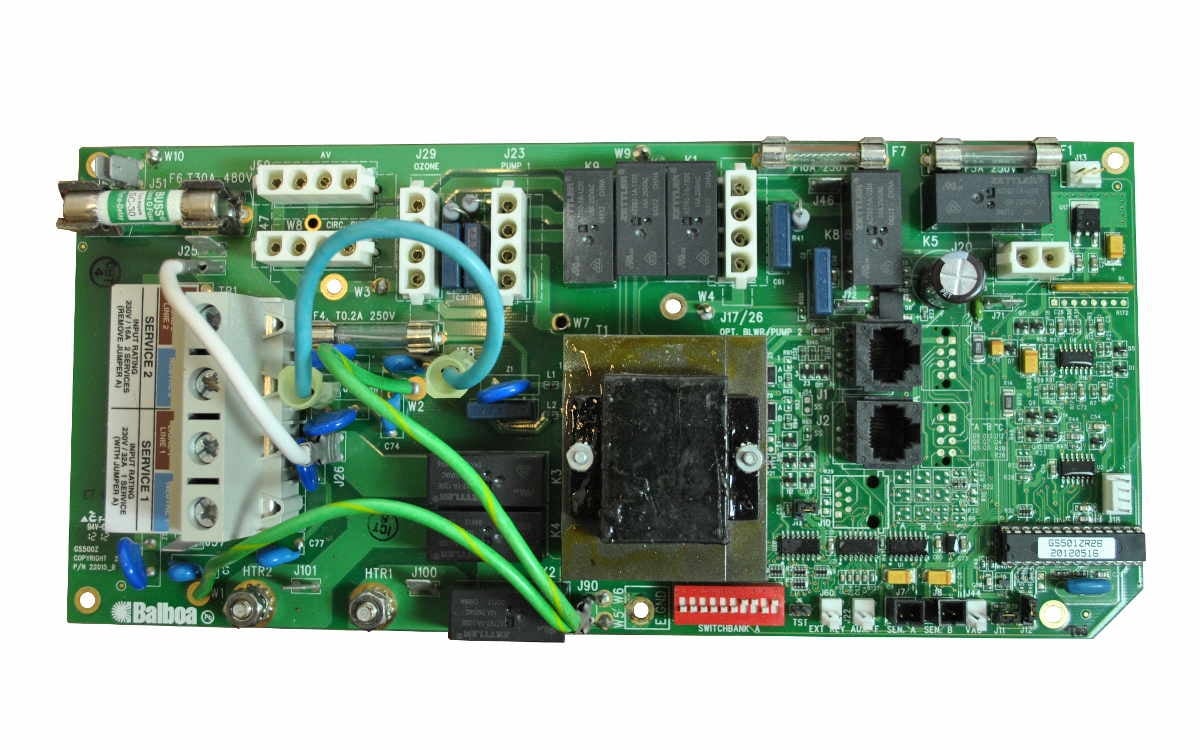

Balboa GS501 Replacement Board-PN 53340-04

BALBOA GS501 CIRUIT BOARD

Balboa P/N 53340-04 Replacement Circuit Board for GS500 Spa Pack

PN 53340-04 is the current version of the circuit board used in GS500 spa packs. This board can also replace earlier versions of the board. May look different to your original controllers board but still fits and has the same functions.

Comes with 1 year warranty.

INPUT

• 230V; 3 wires (line, neutral, ground)

OUTPUTS

• 230V Pump 1, dual speed (high speed: 15-minute timeout; low-speed; 4-hour timeout)
• 230V Blower or Pump 2, single speed (15-minute timeout; low-speed; 30-second for purge cycle w/filter)
• 230V Ozone (ozone runs with low-speed of Pump 1)
• 10V Spa Light (4-hour timeout) •Heater: 3.0kw @ 230V
