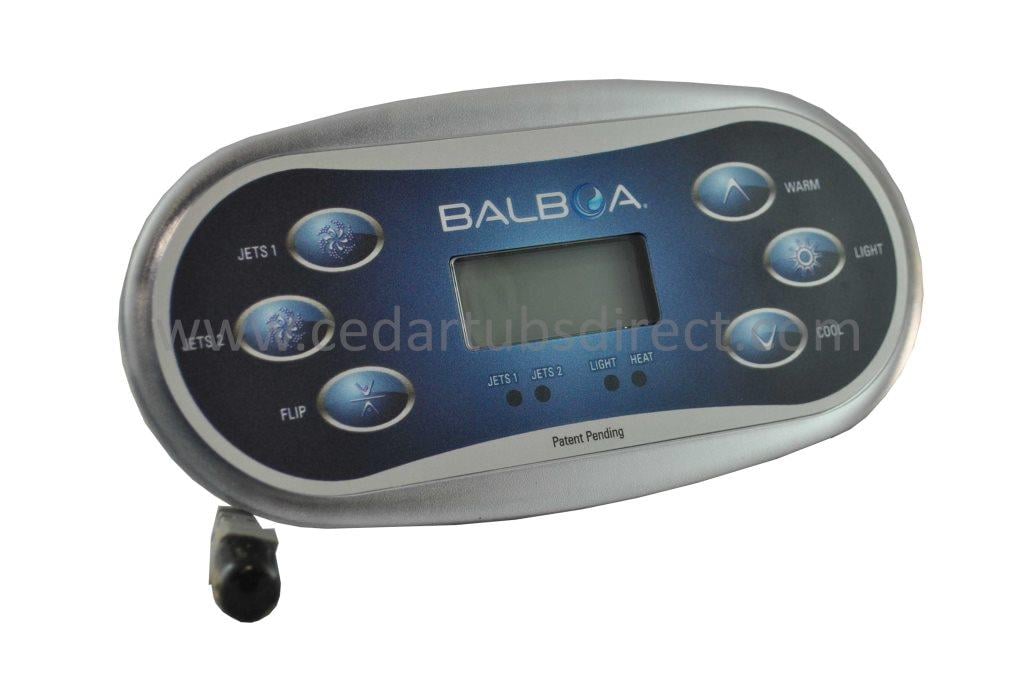

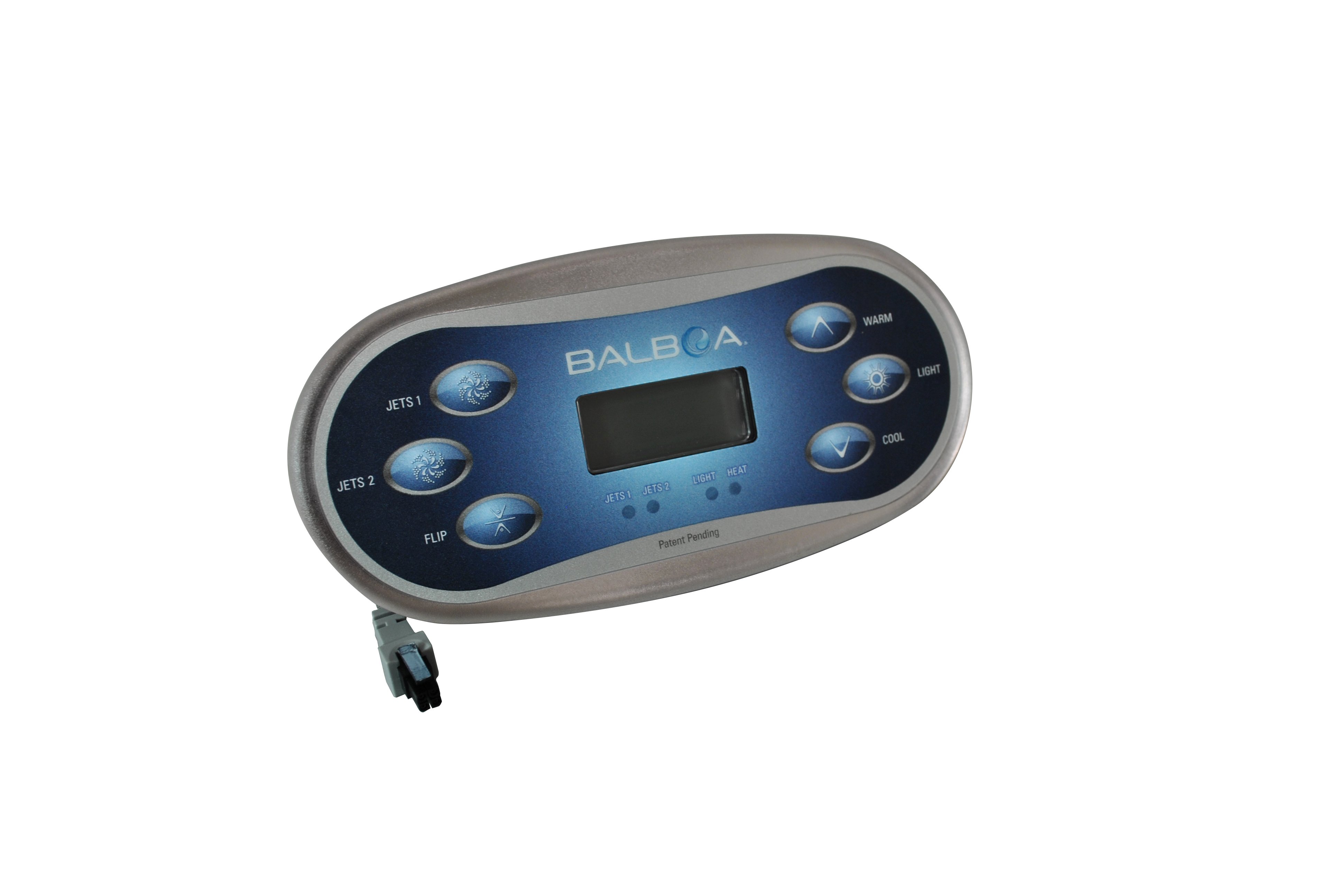

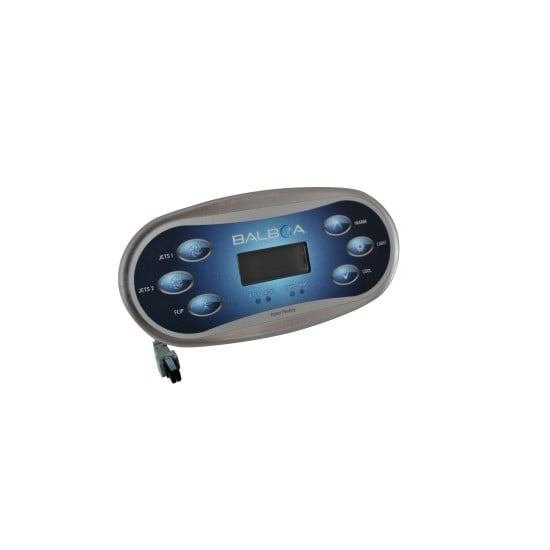

Balboa TP600 LCD 6-Button Panel (PN 50056-06)

PN 50056-01 is a high quality 6-button TP series control panel that is time of day display capable. It is used as the main panel for Balboa NEW BP Series Spa Packs such as the BP501 or. It comes with the standard button layout that includes Jets1, Jets2, Flip, Warm, Light, Cool. The cable is 8ft long with 4-pin TP style connector. Size: 7 1/16" wide x 3.5" high. 1 year warranty.

Features: The new TP panels feature a larger LCD screen that is easier to read. New Press & Hold button navigation make menu selection even easier.

If you have upgraded your hot tub to a new Balboa BP Series spa pack (such as the BP500, BP1500, or BP501), this is the matching digital interface.

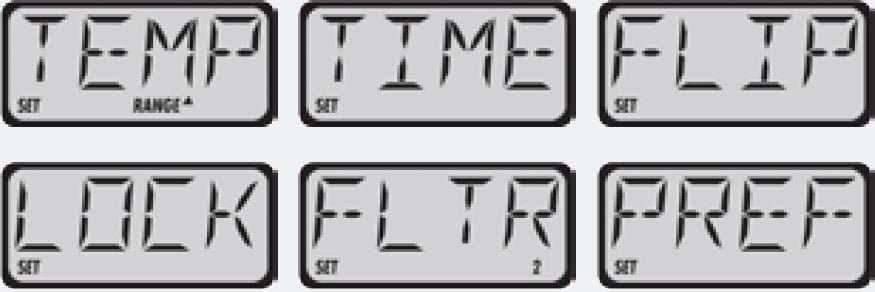

The TP600 (PN 50056) is the workhorse of the Balboa line. It features a large, crystal-clear LCD screen that provides instant feedback on temperature, time of day, and system diagnostics. Unlike older panels that required rapid-fire button clicking, the TP600 utilizes the new "Press & Hold" navigation, making it smoother and more intuitive to scroll through menus and filter cycles.

Compatibility Check

This panel is designed exclusively for the BP Series Control Systems.

Compatible Packs: BP500, BP501, BP601, BP1500, BP2000, BP2100.

Note: This will NOT work with older VS, GS, or EL systems.

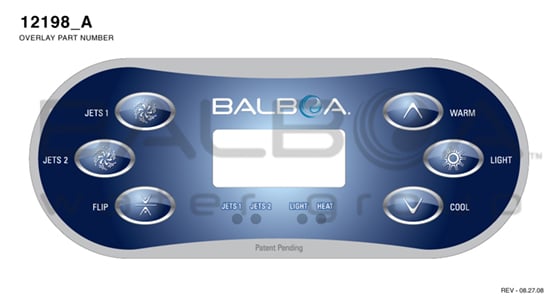

Button Configuration (6-Button Standard)

This unit comes with the standard "2-Pump" overlay configuration:

1. Warm: Increase Temperature

2. Cool: Decrease Temperature

3. Jets 1: Controls Main Pump

4. Jets 2: Controls Secondary Pump (or Blower)

5. Light: On/Off/Mode

6. Aux: (Often labeled "Flip" to invert the screen for easy reading from inside the tub).

Features & Benefits

• Easy Diagnostics: Displays plain text error codes (e.g., "FLOW", "HEAT") to tell you exactly what is happening with your spa.

• Time of Day: Keeps accurate time, allowing you to program filter cycles for specific hours (e.g., to avoid peak electricity rates).

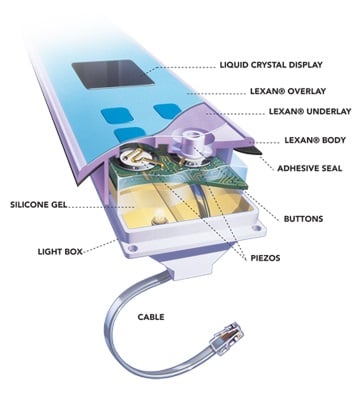

• Water Resistant: Fully encapsulated circuitry to withstand the humid, corrosive spa environment.

Technical Specifications

• Part Number: 50056-01 (TP600 Series)

• Display Type: LCD

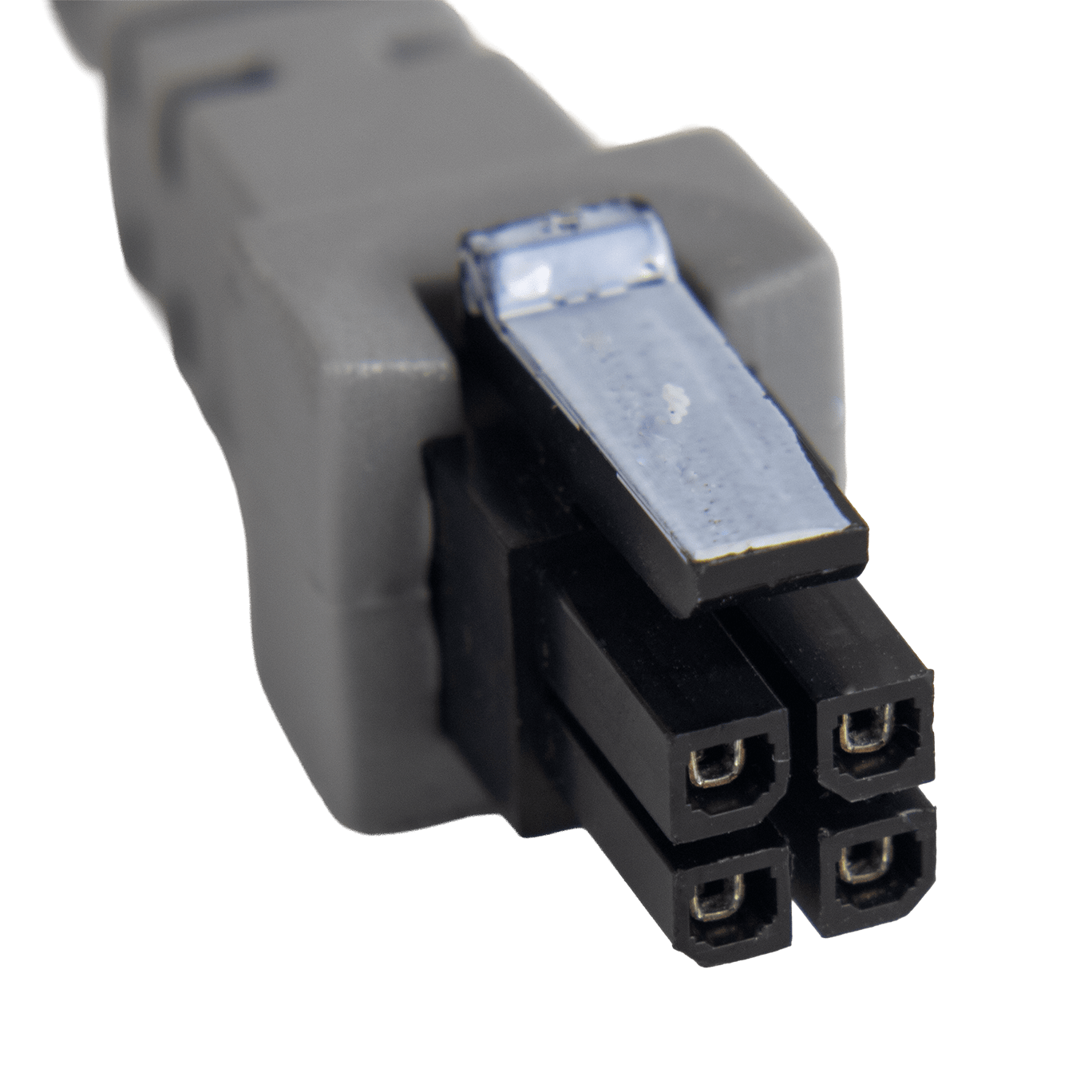

• Connector: 4-Pin Molex (TP Style)

• Cable Length: 8 Feet (approx. 2.4m)

• Dimensions (Faceplate): 7.1" Wide x 3.5" High (18cm x 8.9cm)

• Cutout Requirement: Approx. 5.75" x 2.5"

Warranty: 1 Year Manufacturer Warranty
