Balboa 3 Kw Heater Tube assembly with sensors PN 58118

BALBOA 3 KW HEATER TUBE ASSEMBLY WITH SENSORS PN 58118

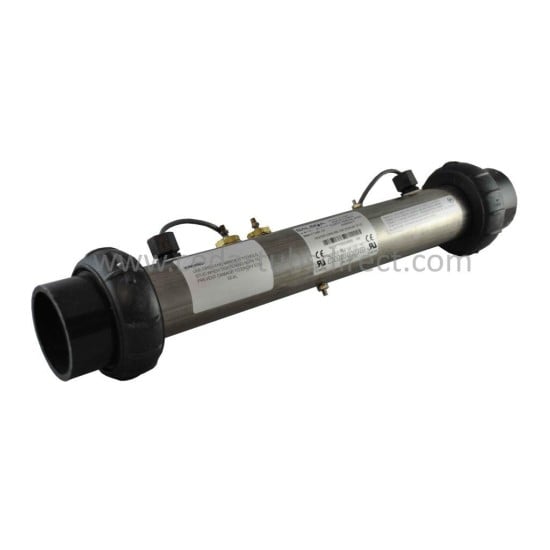

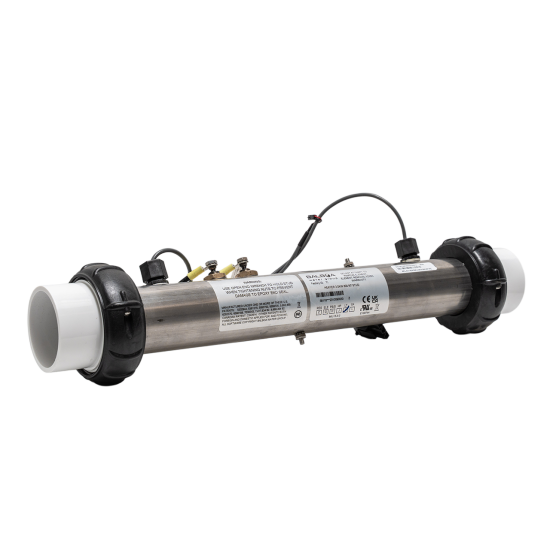

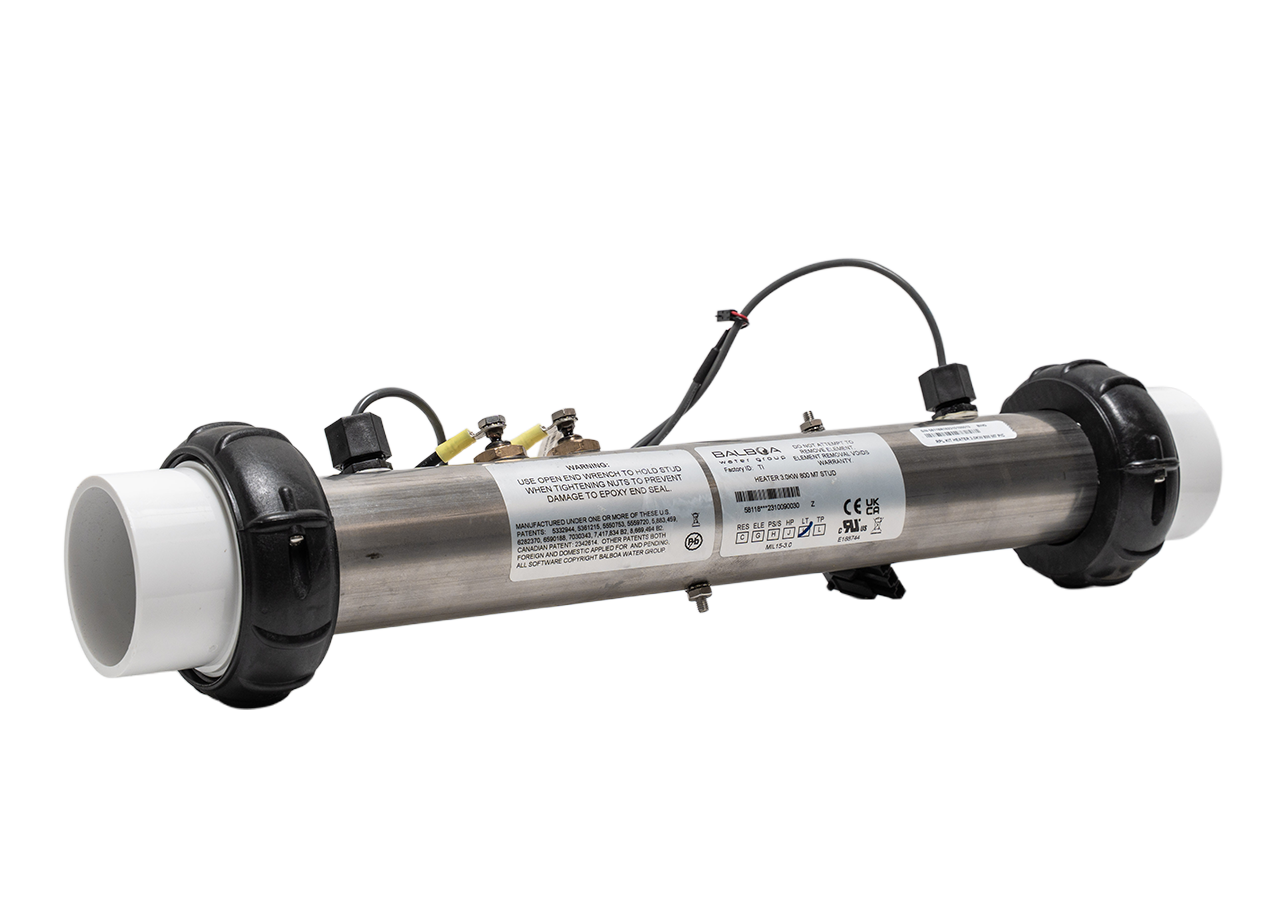

BALBOA P/N 58118 REPLACEMENT HEATER ASSEMBLY WITH SENSORS 3.0 KW @ 240V

PN 58118 is the common heater tube assembly used with Balboa's international (50Hz) M7 spa packs (GS & GL). Can also be used with North American Spa Packs (VS & EL). This unit comes complete with sensors. Heater tube is Stainless Steel and is 2" dia x 15" long. Heater 800 Incoloy element produces 3.0 kW at 240 V and 0.75 kW at 120V. 2" slip tail pieces, gaskets and split ring nuts are supplied. Comes with 1 year warranty. Free Life Time Technical Support provided on this product.

Genuine OEM Performance for VS, GS, and EL Series Control Systems

Is your hot tub displaying "HL" (High Limit) errors or simply refusing to heat? The heating element is the heart of your spa, and when it fails, your relaxation stops.

The Balboa 58118 is the industry-standard replacement heater for Balboa’s M7 Control Systems. This is a complete Flo-Thru Heater Assembly, meaning it comes pre-assembled with the stainless steel tube, the heating element, and the critical M7 temperature sensors, making installation a simple "plug-and-play" repair.

Why Choose Genuine Balboa M7 Technology?

This unit utilizes Balboa's patented M7 (Millennium 7) Technology.

• Dual Sensors: Unlike old heaters that used mechanical pressure switches (which often stuck or failed), this unit uses two digital sensors (included) mounted inside the tube to monitor water flow and temperature simultaneously.

• Safety & Precision: These sensors prevent the heater from "Dry Firing" (turning on without water) and ensure your water temperature is accurate to within 1 degree.

Incoloy 800 Element (Superior Durability)

Not all heating elements are equal. The 58118 uses an Incoloy 800 element rather than standard copper.

• Corrosion Resistance: Incoloy is a high-grade nickel-chromium alloy designed to resist scaling and corrosion from hot tub chemicals.

• Heat Transfer: It provides efficient heat transfer while resisting burnout, ensuring a longer lifespan for your spa pack.

Compatibility Guide

This heater is extremely versatile. It is the standard 15" size used in thousands of spas worldwide.

• North American Packs: Fits VS (Value Series) and EL (Elite Series) packs (e.g., VS501Z, VS510SZ).

• International Packs: Fits Global 50Hz packs like the GS (Global Series) and GL lines commonly found in Europe and Australia.

• Replaces: It replaces almost all 3.0kW M7 heater units with the standard 2" plumbing connection.

Expert Installation Tips

To ensure a leak-free and successful install, follow these tips from our Tech Team:

1. Air Lock Prevention: After installing, slightly loosen the top union nut while filling the tub. Allow water to bleed out for a few seconds to push trapped air out of the heater tube. This prevents the dreaded "DR" (Dry) error code on startup.

2. Sensor Orientation: Ensure the sensor wires are plugged securely into the circuit board. They are interchangeable on the board, but must be seated firmly.

3. Wrench Tightness: Do not over-tighten the split-nuts! Hand-tighten them, then give them a 1/4 turn with a strap wrench. Over-tightening can crack the heater tailpiece.

Technical Specifications

Part Number: Balboa 58118

Heater Type: Flow-Through (Flo-Thru)

Dimensions: 15" Length x 2" Diameter Housing

Material: 316 Stainless Steel Housing

Element: Incoloy 800

Sensors: Included (2x M7 Temp/Flow Sensors - 24" wires)

Plumbing: 2" Slip Tailpieces (Fits standard 2" PVC pipe)

Includes: Split Ring Nuts, Gaskets, and Tailpieces.

Voltage & Wattage Output

This heater is "Convertible" based on how you wire your spa pack:

• @ 240 Volts: Produces 3.0 kW (Rapid Heating)

• @ 120 Volts: Produces 0.75 kW (Maintenance Heating)

Warranty & Support:

Comes with a 1-Year Manufacturer Warranty. Plus, Northern Lights Cedar Tubs offers Free Lifetime Technical Support on this product to help you get your spa running again.

The Balboa 58118 Replaces all 3 Kw M7 Heater units
