Key Highlights - Click on a number to see more info

Slide 1
hot tub specifications
one
two
three
four
five
six
seven
eight
eight
ten
eleven
twelve
Clear Western Red Cedar

Using only 100% Clear Western Red Cedar! No Knots! Our tubs stand 48" high with 47"staves (sides), this allows for nearly 43" of interior depth, giving the ultimate soak experience!

Image is not available
fine cedar
Flat stainless steel straps

We use only 304L grade stainless steel straps and screws to eliminate any rust or oxidization.

Image is not available
Insulated cover

Our 4" and 5" Thick Marine Grade Vinyl covers, with child locks, are one of the highest insulating covers available. These covers include an aluminum back plate for extra support

Vinyl covers
cover clip
Hydrotherapy jets

Adjustable Industrial Cedar Jets designed specifically for wooden hot tubs ensures durability, and include 1" air valve for maximum adjustable jet pressure. The dual air controls allow for individual adjustment of jet pressure.

cedar jets
air valve
Floor supports

Pre-assembled floor with pressure treated 4x4 floor joists support the floor solidly.

cedar jets
Benches with raised section

Bi-level hexagon seat structure, allows for different heights and soaking levels, great for kids! The upper seat makes entry into the tub easier.

cedar jets
Heating options

5 types of heaters to choose from natural gas/propane, electric or wood fired, solar, heat pump, and air source heat pumps for heating system’s.

water choice
woodfired heater
electric heater
heat exchanger
air source heat pump
gas heater
Precision joints

Our laser guided milling design uses two separate joints; a canoe joint for the staves and T&G joint for the floor giving superior water tightness.

joints
laser guided
Control panel

Top side LCD controls that operate control functions such as light and jets and temperatures. Provide heating accuracy that is +/-1 degree. Wi-Fi controller option available for phone and remote control.

lcd controls
wifi controller

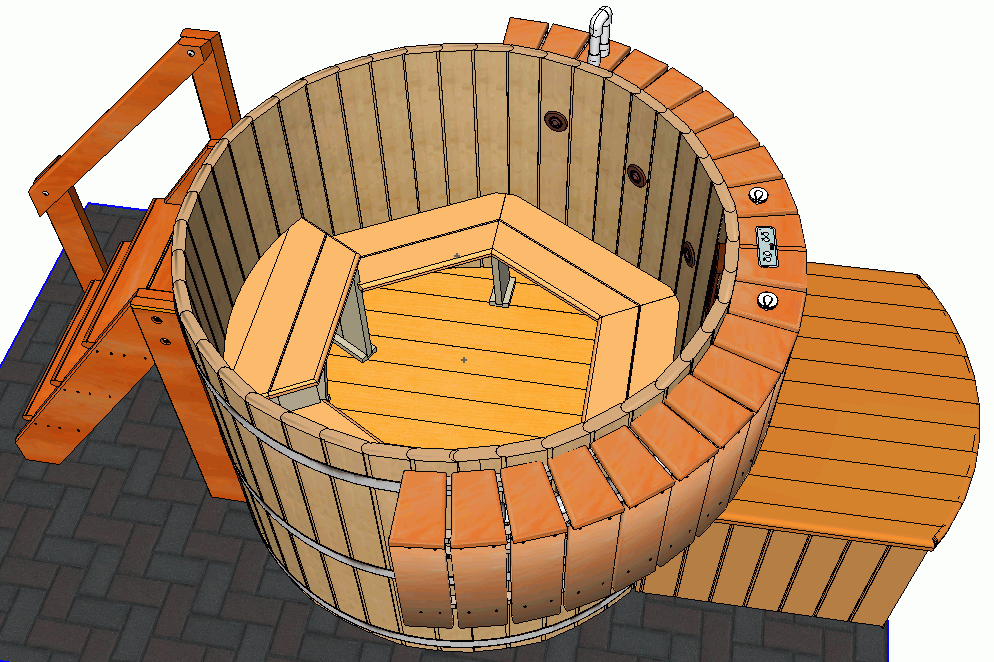

Housing enclosure

Optional Custom cedar housing is unique to Northern Lights Cedar Hot Tubs. This option is custom built to isolate the hot tub's electronics (balboa spa pack, ozonator, pump and filter) from the elements. It also allows easy access to the top load filter canister for quick filter cleaning.

Housing enclosure
Side shelves and skirting

Optional Custom cedar side shelves are designed specifically to match each circumference of hot tub size. They allow an ideal spot for drinks and towels. As a further option, we offer cedar skirting to hide the jet plumbing.

side shelves
Stairs with side railing

Optional Custom cedar stairs are ideal for easy entry on a standalone configuration (hot tub not built into a deck). The stairs are custom angled to fit properly with each different hot tub circumference size. Their solid construction includes 2" x 8" solid cedar stair risers.

cedar stairs

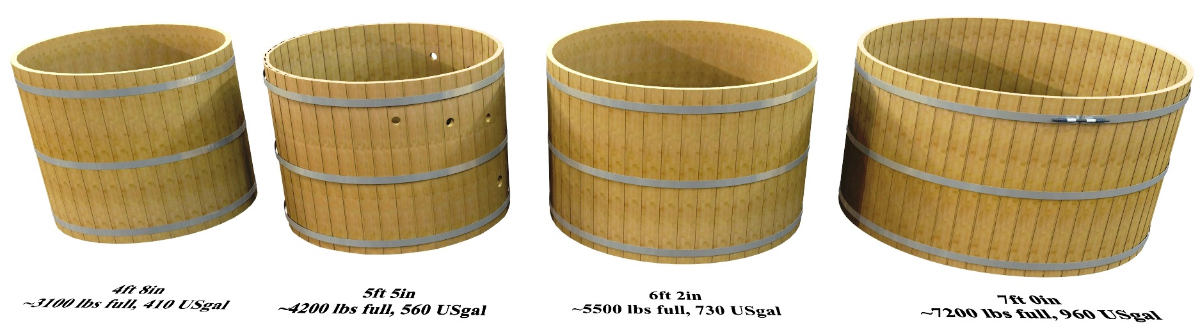

Tub size comparison Information

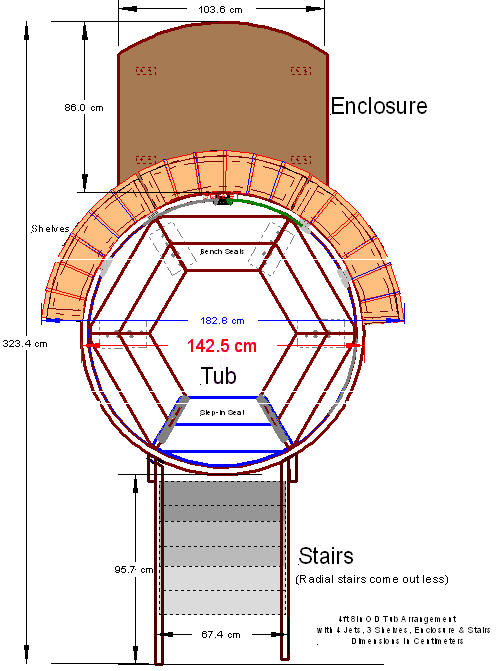

Layout Configuration CAD Drawings

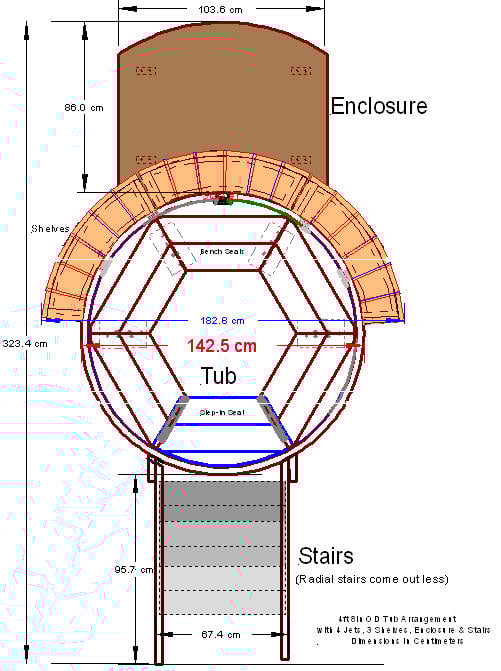

Small Tub
(Metric)

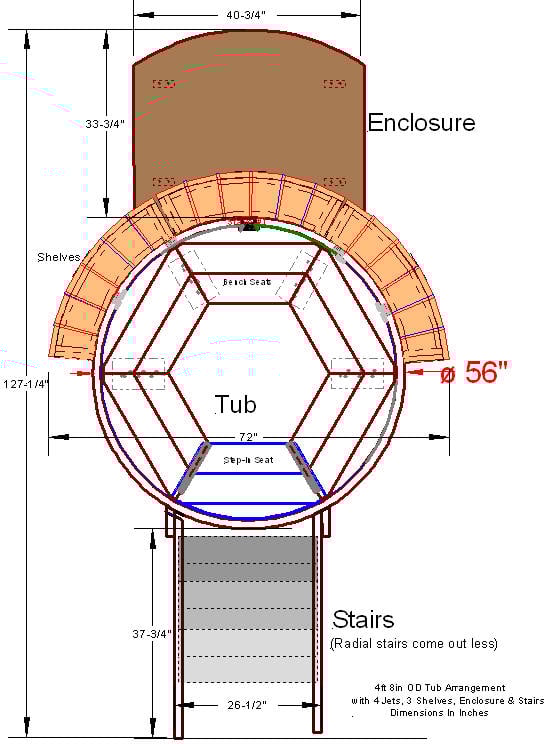

Small Tub
(Standard)

+Small Tub (Standard) (Standard)" />

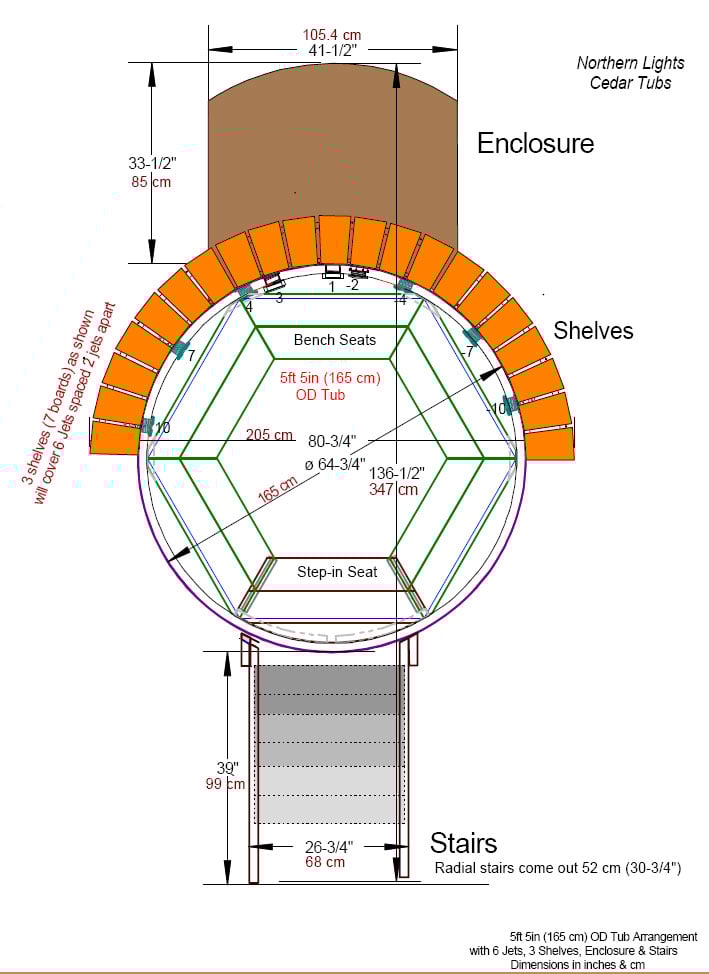

Medium Tub
(Metric & Standard)

+Medium Tub (Metric & Standard) (Metric & Standard)" />

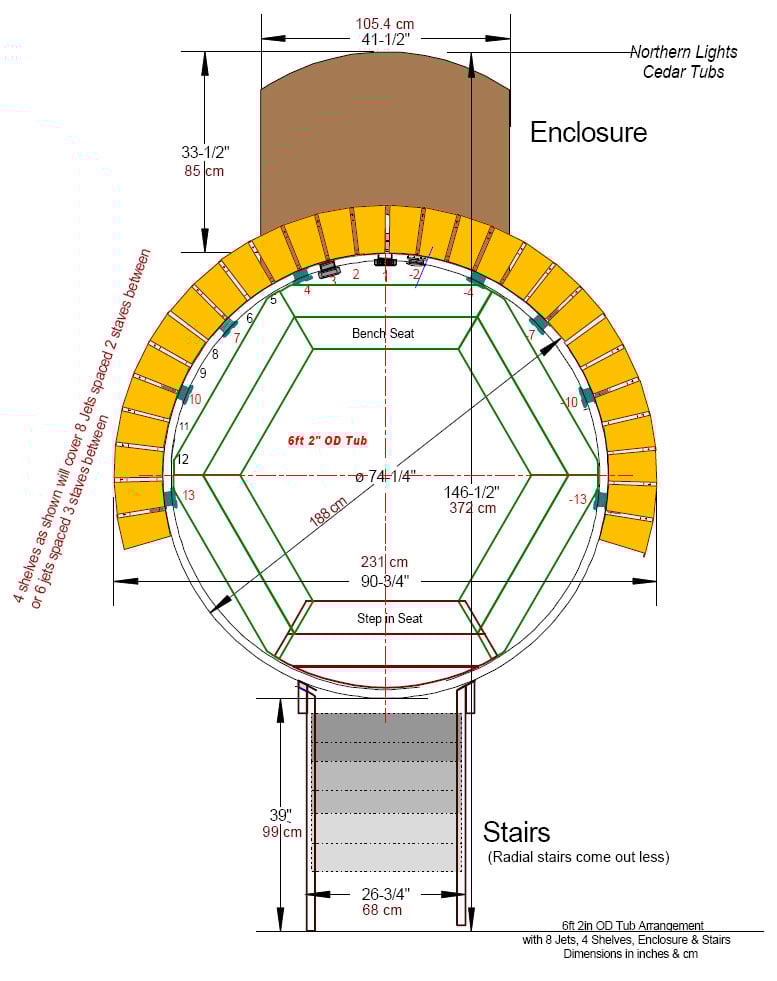

Large Hot Tub
(Metric & Standard)

+Large Hot Tub (Metric & Standard) (Metric & Standard)" />

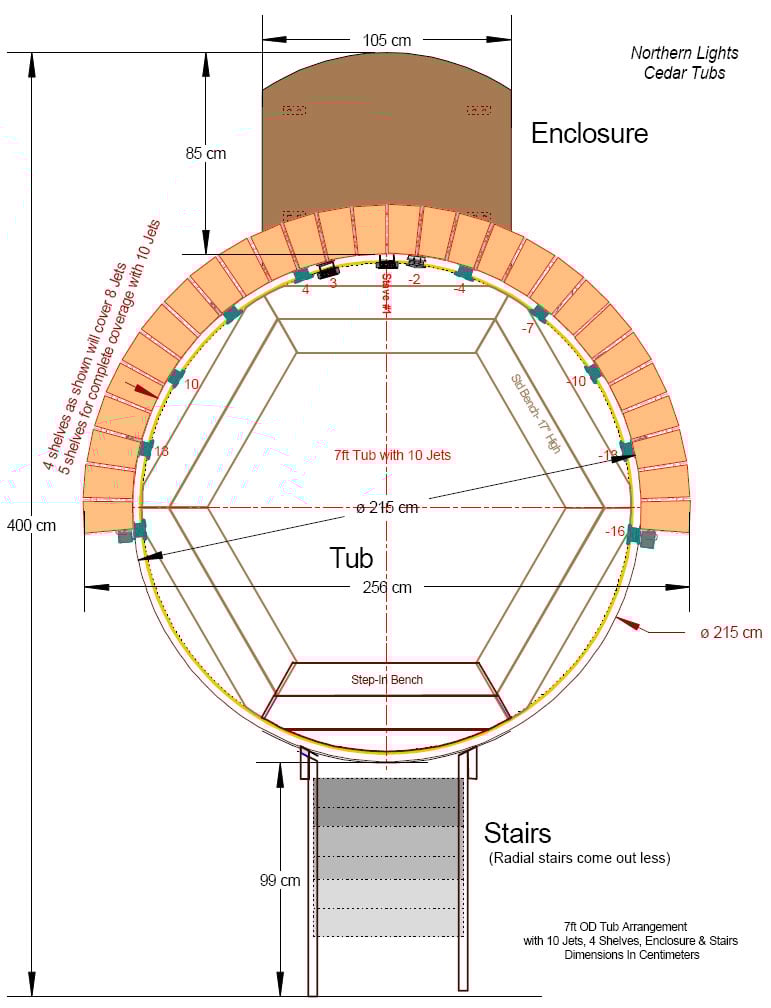

X Large Hot Tub
(Metric)

+X Large Hot Tub (Metric) (Metric)" />

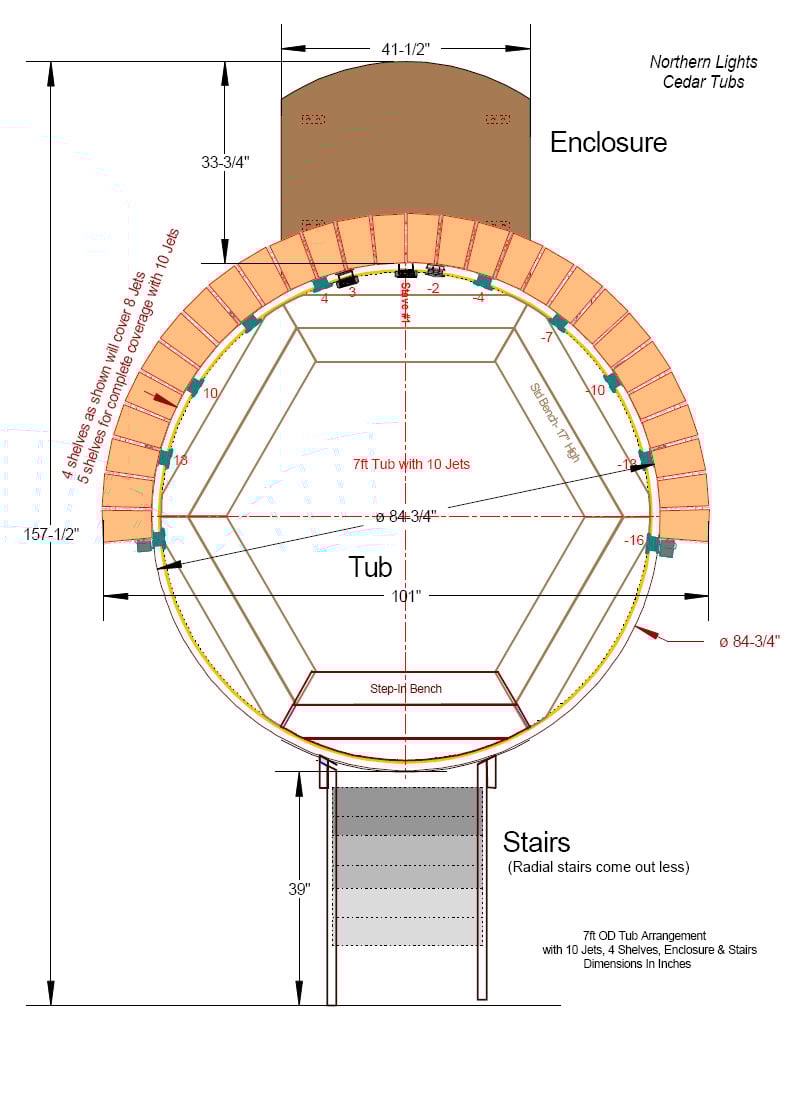

X Large Hot Tub
(Standard)

+X Large Hot Tub (Standard) (Standard)" />

Tub Code Using 48" High

 SMMEDLRGXLG
Max Users 4 6 8 10
# of Seats 3 6 6 6
Diameter 56 65 74 84
Height of Ground 48" 48" 48" 48"
# of Jets Standard 4 4 4 4
Max # Jets 6 8 10 10
Gallons (IMP) 294 400 523 687
Gallons (US) 352 480 628 825
Liters 1334 1819 2378 3124
Pump size HP 1 1 1 1
Heater 5.5kw/Chofu 5.5kw/ Chofu 5.5kw/Gas 5.5kw/Gas
ElectRequired Service Required 2P-40A GFD 2P-40A GFD 2P-40A GFD 2P-40A GFD
Weight
(Including Tub)
3300lbs 4400lbs 5750lbs 7700lbs
Chofu Wood
APRX Heat Up Time
3-4 5 6 9
Electric
APRX Heat Up Time
9 11 15 19
Natural Gas/Propane
APRX Heat Up Time
2 3 4 5

Models & Sizes

Small

Small (4 pers.)

Small Tub

Max Users 4 Pers.
Number of Seats 3
Diameter 56
Height 47"
Number of Jets Standard 4
Max # Jets 6
Gallons (IMP) 294
Gallons (US) 252
Liters 1334
Pump size HP 1
Heater 5.5kw/Chofu
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 3300lbs
Chofu Wood APRX Heat Up Time 3-4
Electric APRX Heat Up Time 9
Natural Gas/Propane APRX Heat Up Time 2

Max Users 4 Pers.
Number of Seats 3
Diameter 56
Height 47"
Number of Jets Standard 4
Max # Jets 6
Gallons (IMP) 294
Gallons (US) 252
Liters 1334
Pump size HP 1
Heater 5.5kw/Chofu
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 3300lbs
Chofu Wood APRX Heat Up Time 3-4
Electric APRX Heat Up Time 9
Natural Gas/Propane APRX Heat Up Time 2
Small Tub
Medium

Medium (6 pers.)

Small Tub

Max Users 6 Pers.
Number of Seats 6
Diameter 65
Height 47"
Number of Jets Standard 4
Max # Jets 8
Gallons (IMP) 400
Gallons (US) 480
Liters 1819
Pump size HP 1
Heater 5.5kw/Chofu
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 4400lbs
Chofu Wood APRX Heat Up Time 5
Electric APRX Heat Up Time 11
Natural Gas/Propane APRX Heat Up Time 3

Max Users 6 Pers.
Number of Seats 6
Diameter 65
Height 47"
Number of Jets Standard 4
Max # Jets 8
Gallons (IMP) 400
Gallons (US) 480
Liters 1819
Pump size HP 1
Heater 5.5kw/Chofu
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 4400lbs
Chofu Wood APRX Heat Up Time 5
Electric APRX Heat Up Time 11
Natural Gas/Propane APRX Heat Up Time 3
Small Tub
Large

Large (8 pers.)

Small Tub

Max Users 8 Pers.
Number of Seats 6
Diameter 74
Height 47"
Number of Jets Standard 4
Max # Jets 10
Gallons (IMP) 523
Gallons (US) 628
Liters 2378
Pump size HP 1
Heater 5.5kw/Gas
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 5750lbs
Chofu Wood APRX Heat Up Time 6
Electric APRX Heat Up Time 15
Natural Gas/Propane APRX Heat Up Time 4

Max Users 8 Pers.
Number of Seats 6
Diameter 74
Height 47"
Number of Jets Standard 4
Max # Jets 10
Gallons (IMP) 523
Gallons (US) 628
Liters 2378
Pump size HP 1
Heater 5.5kw/Gas
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 5750lbs
Chofu Wood APRX Heat Up Time 6
Electric APRX Heat Up Time 15
Natural Gas/Propane APRX Heat Up Time 4
Small Tub
X-large

X-Large (10 pers.)

Small Tub

Max Users 10 Pers.
Number of Seats 6
Diameter 84
Height 47"
Number of Jets Standard 4
Max # Jets 10
Gallons (IMP) 687
Gallons (US) 825
Liters 3124
Pump size HP 1
Heater 5.5kw/Gas
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 7700lbs
Chofu Wood APRX Heat Up Time 9
Electric APRX Heat Up Time 19
Natural Gas/Propane APRX Heat Up Time 5

Max Users 10 Pers.
Number of Seats 6
Diameter 84
Height 47"
Number of Jets Standard 4
Max # Jets 10
Gallons (IMP) 687
Gallons (US) 825
Liters 3124
Pump size HP 1
Heater 5.5kw/Gas
ElectRequired Service Required 2P-40A GFD
Weight (Including Tub) 7700lbs
Chofu Wood APRX Heat Up Time 9
Electric APRX Heat Up Time 19
Natural Gas/Propane APRX Heat Up Time 5
Small Tub
